Description

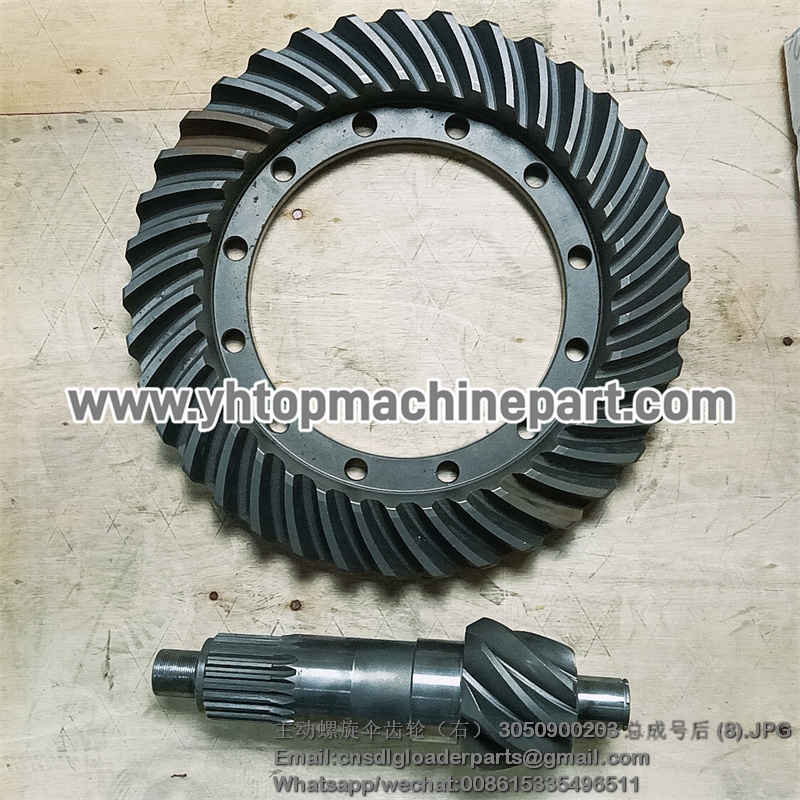

ZL50.5.1-23A/9B 3050900203 CROWN WHEEL SDLG RS8260 RS8200 RS8220 ROAD ROLLER PART

1 螺母GB889.2-M33*1.5-8 LOCK NUT 4013000066 高23
2 垫圈 WASHER 29070001121 ZL50.5.1-2A
3 输入法兰 CONNECTION FLANGE 29070001131
4 油封HG4-692-SG80*100*12 SEALING 4030000049 HG4-692-SG80*100*12
5 密封盖 SEALING COVER 29070001141 ZL50.5.1-3B
6 螺栓GB5782-M14*55EpZn-8.8 BOLT 4011000067 GB5782-M14*55EpZn-8.8
7 垫圈GB93-14-65Mn SPRING WASHER 4015000027 GB93-14-65Mn
8 垫密片 GASKET 29070001161 ZL50.5.1-4A
9 轴承套 BEARING BUSHING 29070001171 ZL50.5.1-6A
10 调整垫片 SHIM 29070001181 ZL50.5.1-5A
11 调整垫片 SHIM 29070001191 ZL50.5.1-5A
12 调整垫片 SHIM 29070001201 ZL50.5.1-5A
13 调整垫片 SHIM 29070013031
15 托架总成 CENTER HOUSING 29070001321
16 止推螺栓 SCREW 29070000301 ZL50.5.1.2
17 锁紧片 LOCK WASHER 29070000311 ZL50.5.1-8
18 螺母GB6173-M27*2-05 NUT 4013000052 GB6173-M27*2-05
19 销GB119.2-10u8*30 PIN 4016000124 GB119.2-10u8*30
20 滚动轴承GB297-31313 ROLLER BEARING 4021000030 GB297-31313
21 垫片 SHIM 29070000181 ZL50.5.1-25A
22 垫片 SHIM 29070000191 ZL50.5.1-25A
23 垫片 SHIM 29070000201 ZL50.5.1-25A
24 垫片 SHIM 29070000211 ZL50.5.1-25A
25 轴套 SLEEVE 29070001151 ZL50.5.1-7A
26 滚动轴承GB297-31314 ROLLER BEARING 4021000032 GB297-31314
27 主动螺旋伞齿轮（右） Crown wheel(right) 29090001091 ZL50.5.1-9B
28 滚动轴承GB283-NUP2307 ROLLER BEARING 4021000027 GB283-NUP2307
29 挡圈GB894.1-35-65Mn RETAINING RING 4015000020 GB894.1-35-65Mn
30 调整螺母 NUT 29070000351 ZL50.5.1-13A
31 锁紧片 LOCK WASHER 29070000401 ZL50.5.1-18A
32 垫圈GB93-10-65Mn SPRING WASHER 4015000025 GB93-10-65Mn
33 螺栓GB5786-M10*1*20EpZn-8.8 BOLT 4011000597 GB5786-M10*1*20-Ep.Zn-8.8
34 滚动轴承GB297-32216 ROLLER BEARING 4021000036 GB297-32216
35 差速器左壳 DIFFERENTIAL HOUSING 29070000431
36 螺母GB6176-M16*1.5-10 NUT 4013000198
37 垫圈 WASHER 29070009511
38 固定销 PIN 29070000461 ZL50.5.1-26
39 半轴齿轮垫片 SHIM 29070000381 ZL50.5.1-16A
40 半轴齿轮 DIFFERENTIAL SIDE GEAR 29070013221
41 锥齿轮垫片 THRUST WASHER 29070000331 ZL50.5.1-11A
42 锥齿轮 DIFFERENTIAL PINION 29070000341 ZL50.5.1-12A
43 十字轴 SPIDER 29070000411 ZL50.5.1-20A
44 从动螺旋伞齿轮（左） Crown wheel(left) 29090000081 ZL50.5.1-23A
45 螺栓 BOLT 29070009501
46 差速器右壳 DIFFERENTIAL HOUSING 29070000361
47 螺栓 BOLT 29070009491
48 垫圈GB93-12-65Mn SPRING WASHER 4015000026 GB93-12-65Mn
49 螺栓GB5782-M12*55EpZn-8.8 BOLT 4011000186 GB5782-M12*55EpZn-8.8
50 后主从动螺旋伞齿轮 CROWN WHEEL 3050900203 ZL50.5.1-23A/9B
51 差速器左右壳 DIFFERENTIAL HOUSING 2050900079 ZL50.5.1ZP
52 锥齿半齿总成 GEAR KIT 21909006471
53 差速器总成 DIFFERENTIAL SPIDER 29070019611
54 输入法兰 CONNECTION FLANGE 29070001291
55 油封压盖 COVER 29070000641 ZL50.5.1.1-2A
