Description

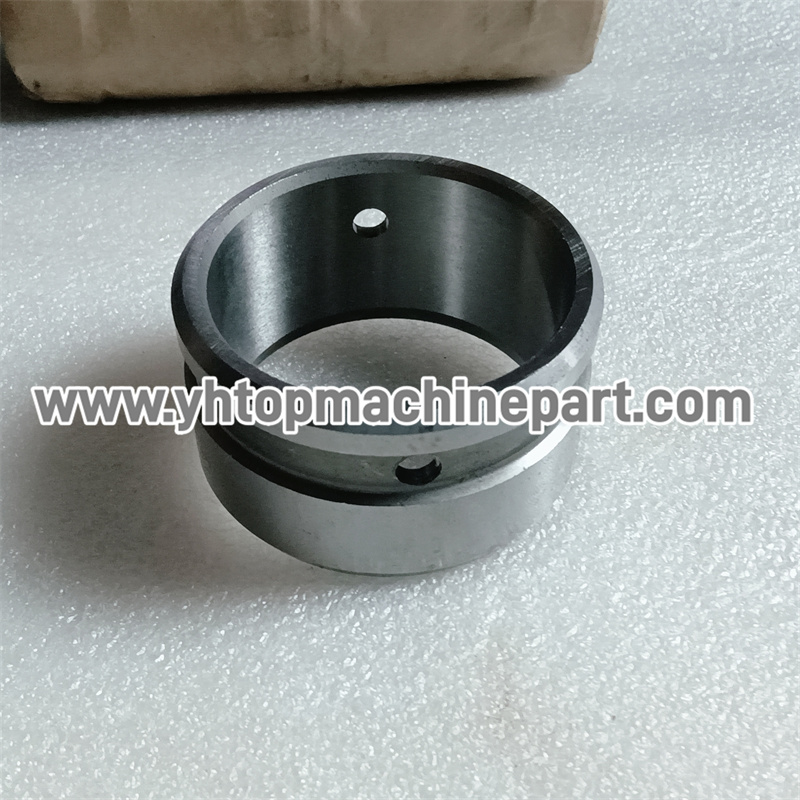

ZL20-030032 4110000038143 7200002299 860114728 sleeve bushing xcmg sdlg Transmission 4110000499 BYD4208

1 箱体 ZL20-030001 HOUSING 4110000038101
2 变速箱铭牌D85A-18-39 Name plate 4110000499291
3 抽芯铆钉JB4005-1985 3.2*7 Rivet 4110000499292
4 支架ZL20-030057X13 BRACKET 4110000499228
5 螺栓GB5783-M16*80EpZn-8.8 SCREW 4011000877
6 垫圈GB93-16-65Mn SPRING WASHER 4015000098
7 螺母GB6170-M16EpZn-8 NUT 4013000016
8 螺栓GB5783-M10*25-8.8 SCREW 4011001164
9 垫圈GB93-10-65Mn SPRING WASHER 4015000025
10 端盖 ZL20-030003 COVER PLATE 4110000038110
11 纸垫 ZL20-030002 GASKET 4110000038111
12 调整环 ZL20-030005 ADJUSTING WASHER 4110000038112
13 调整螺丝 ZL20-030006 SCREW 4110000038113
14 六角头螺栓GB5783-2000 M6*6 Screw 4110000499293
15 止动片 ZL20-030004 THRUST WASHER 4110000038115
16 输人轴端盖 ZL20-030008 COVER PLATE 4110000038116
17 唇形密封圈GB9877.1-88 FB45*62*8 Sealing ring 4110000499294
18 中间轴端盖 ZL20-030058 COVER PLATE 4110000038118
19 纸垫ZL20-030025A Gasket 4110000499295
20 挡油盖调整环 ZL20-030059 ADJUSTING WASHER 4110000038120
21 螺母GB6170-M8-8 NUT 4013000162
22 垫圈GB93-8-65Mn SPRING WASHER 4015000036
23 法兰接头ZL20-030062-2W1 NIPPLE 4110000038049
24 闷塞 Q21-34 7 PLUG 4110000038167
25 滤芯WU-100*100-J FILTER INSERT 4110000038125
26 螺栓GB5783-M8*25-8.8 BOLT 4011000724
27 滤油器组件 ZL20-030062W1X13 OIL FILTER 4110000038380
29 密封圈4*50 Q26-01-17 Sealing ring 4110000499296
30 垫密片ZL20-030020 Gasket 4110000499297
31 油底壳 ZL20-034001 OIL SUMP 4110000038131
32 吸油管 ZL20-030007 PIPE 4110000038132
33 永久磁铁 ZL20-030043 MAGNET 4110000038133
34 垫圈ZL20-034004X WASHER 4110000499225
35 螺塞ZL20-034005 PLUG 4110000499226
36 O形圈GB1235-76 40*3.1 O-ring 4110000499298
37 油管盖 ZL20-037200 COVER PLATE 4110000038139
38 螺栓GB5783-M8*30flZnyc-8.8-480 SCREW 4011001500
40 大端盖纸垫 ZL20-030063 GASKET 4110000038140
41 闷塞 ZL20-031005 PLUG 4110000038168
42 变速箱大端盖组件ZL20-031000D Cover 4110000499299
43 轴套 ZL20-030032 BUSHING 4110000038143
44 BS428变速箱全套纸垫 GASKET 4110000038326
45 外封轴套 ZL20-035002 BUSHING 4110000038145
46 进油端盖（一档、倒档） ZL20-035001-B COVER PLATE 4110000038382
47 圆柱销GB119.1-2000 10*40 Pin 4110000499300
48 螺钉GB70.1-M10*30EpZn-8.8 SCREW 4014000134
49 输出轴调整垫片 ZL20-030022 SHIM 4110000038149
50 前输出轴封油盖 ZL20-030026 COVER 4110000038150
51 唇形密封圈GB9877.1-88 FB65*90*10 Sealing ring 4110000499301
52 螺栓GB5783-M10*30-8.8 SCREW 4011000777
53 通风器盖 ZL20-030101A COVER PLATE 4110000038153
55 通风片 ZL20-030103 PLATE 4110000038155
56 铜套 ZL20-030105A SPACER SLEEVE 4110000038156
57 迷宫片 ZL20-030106 SPACER 4110000038157
58 铜隔套 ZL20-030107A SPACER SLEEVE 4110000038158
59 长螺丝 ZL20-030102 SCREW 4110000038159
60 壳体 ZL20-030109B HOUSING 4110000038160
61 纸垫 ZL20-030108 GASKET 4110000038161
62 箱盖ZL030039 Cover plate 4110000499304
63 挡油盖 ZL20-030060 COVER PLATE 4110000038163
64 铆钉GB867-4*18-BL2 RIVET 4019000051
65 纸垫 ZL20-030040 0.5 GASKET 4110000038165
66 螺栓GB5783-M10*35-8.8 SCREW 4011001139
67 进油端盖 （二档）ZL20-035001-C COVER PLATE 4110000038383
68 箱体组件ZL20 101 001-P1 Tank 4110000499312
