Description

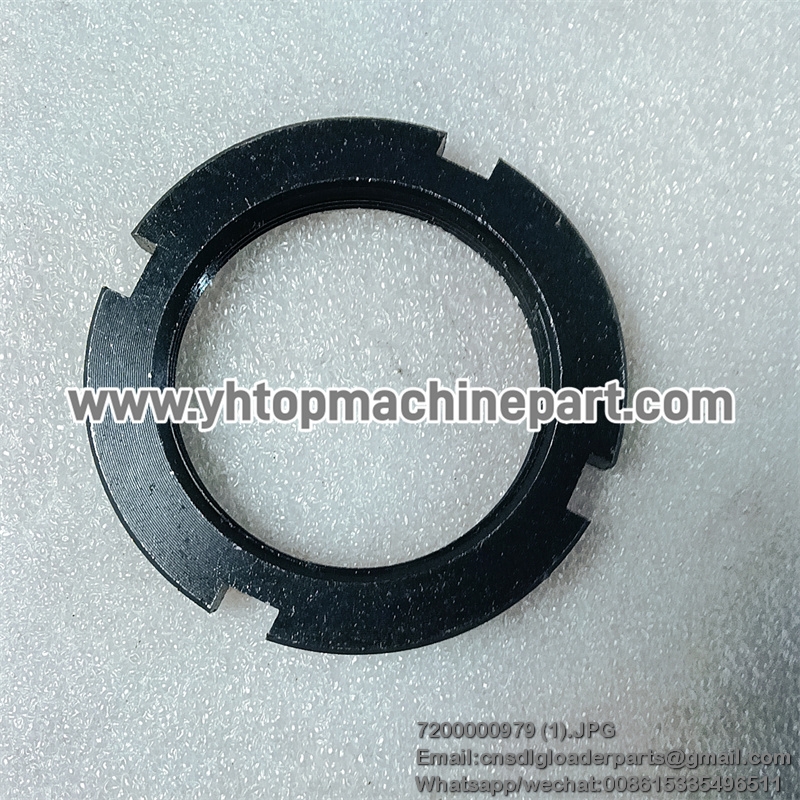

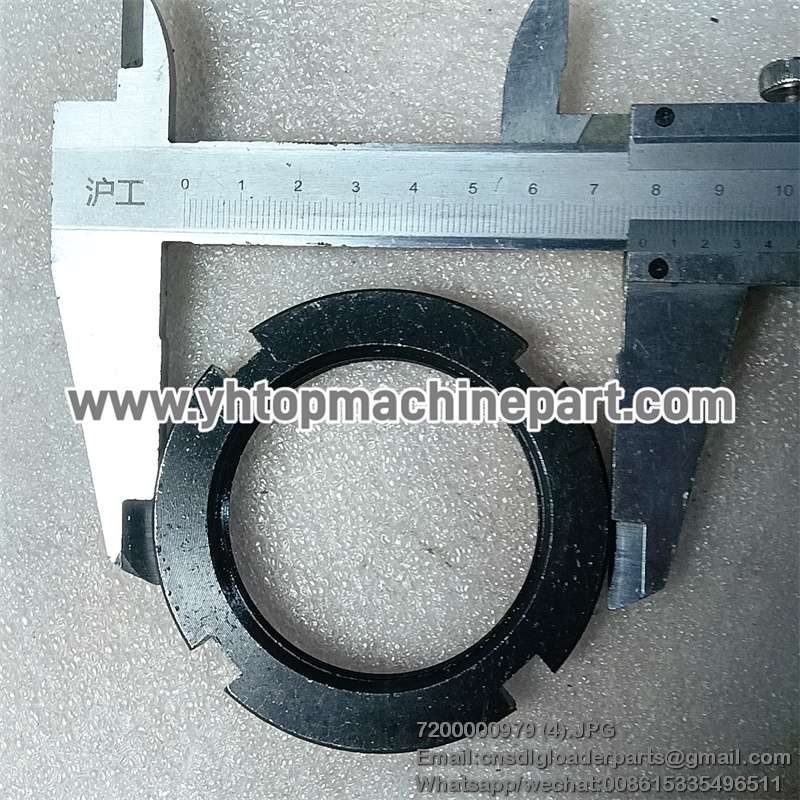

Round nut 7200000979 SDLG LG918 Wheel loader parts

KEY PART NO. DESCRIPTION QTY REMARKS
1 7200000193 桥壳总成 AXLE HOUSING ASS’Y 1
2 7200000977 制动盘 BRAKER DISC 2
3 4015000026 垫圈 GB93-12-65Mn WASHER GB93-12-65Mn 32
4 7200000225 螺栓 GB5785-M12*1.5*35-8.8 BOLT GB5785-M12*1.5*35-8.8 32
5 7200000978 油封 HG4-692-67 OIL SEAL 2
6 7200000197 外壳 HUB WHEEL 2
7 7200000188 螺栓 RIM BOLT 各 8
8 7200000194 球螺母 RIM NUT 各 8
9 7200000220 轴承 GB297-2007114 BEARING GB297-2007114 各 2
10 7200000168 齿圈 AXLE RING GEAR 2
11 7200000227 垫圈 GB858-56-Q235A WASHER GB858-56-Q235A 2
12 7200000979 圆螺母 GB810-M56*2 LOCK NUT GB810-M56*2 2
13 7200000201 行星架 PLANET CARRIER 2
14 7200000204 行星轮轴 PLANET SHAFT 6
15 7200000202 行星轮 ALANET GEAR 6
16 7200000203 行星轮挡圈 RING SNAP 12
17 7200000222 钢球 GB308-5-GCr15 STEEL BALL 6
18 4015000026 垫圈 GB93-12-65Mn WASHER 16
19 7200000223 螺栓 GB32.3-M12*1.5*35-8.8 BOLT GB32.3-M12*1.5*35-8.8 32
20 7200000160 半轴 DIFFERERNTIAL AXLE 2
21 7200000195 太阳轮 GEAR-SUN 2
22 4015000020 挡圈 GB894.1-35-65Mn RING SNAP GB894.1-35-65Mn 2
23 7200000170 垫片 SPACER 2
24 7200000181 盖 COVER 2
25 4015000036 垫圈 GB93-8-65Mn WASHER 16
26 7200000981 螺栓 GB5782-M8*20 BOLT 16
27 4015000122 垫圈 JB982-24 WASHER 2
28 7200000186 螺塞 PLUG 2
29 7200000196 通气塞总成 BREATHER PIPE ASS’Y 1
30 4015000025 垫圈 GB93-10-65Mn WASHER 12
31 7200000982 螺栓 M10*25 BOLT 12
32 7200000217 销 GB119-A12*32-35 PIN GB119-A12*32-35 4
33 7200000159 O 型密封圈 O-IRNG 2
34 7200000155 滚针 GB309-3*30-GCr9 ROLLER GB309-3*30-GCr9 174

1 7200000228 开口销 GB91-4*40EpZn-Q235A SPLIT PIN 1
2 7200000983 六角开机理螺母 CASTLE NUT 1
3 7200000172 垫圈 WASHER 2
4 7200000214 主动齿轮 INPUT FLANGE 1
5 7200000177 防尘罩 DUST PROOF 1
6 7200000206 油封总成 OIL SEAL 1
7 GB1235 O－RING O－RING 1
8 7200000210 轴承盖 SEAL SEAT 1
9 7200000191 密封垫片 SPACER 1
10 7200000156 轴承 GB297-7609 BEARING 2
11 7200000212 轴承套 BEARING SLEEVE 2
12 7200000988 垫圈 GB5782-12 WASHER 6
13 7200000984 螺栓 GB93-M12*1.25*45 BOLT 6
14 7200000173 调整垫片 SHIM 1 组
15 7200000209 轴承调整垫片 SHIM 1 组
16 7200000211 轴承隔套 SLEEVE 1
17 7200000190 铆钉 RIVER 12
18 7200000178 防松垫片 LOCK PLATE 4
19 7200000157 轴承 GB297-7510 BEARING 2
20 7200000174 调整螺母 ADJUSTING NUT 2
21 7200000216 主减速器壳 MAIN REDUCER CASE 1
22 7200000213 轴承止推垫圈 SPACER 1
23 7200000169 从动锥齿轮 SHRAL BEVEL GEAR 1
24 7200000166 差速器轴承盖 SEALING SPACER AXLE CASE 1
25 7200000175 调整螺母锁片 BEARING COVER 2
26 7200000175 调整螺母锁片 LOCK PLATE 2
27 4015000036 垫圈 GB93-8-65Mn WASHER 2
28 7200000989 螺栓 GB5782-M8*16 BOLT 2
29 7200000986 防松垫片 WASHER 4
30 7200000226 螺栓 GB5785-M14*1.5*70-8.8 BOLT 4
31 7200000215 主动锥齿轮 SPIRAL BEVEL PINION 1
32 7200000219 轴承 GB283-102205 BEARING 1
33 4015000130 挡圈 GB894.1-25-65Mn RING 1
34 7200000200 行星齿轮垫 PLANET GEARING SPACER 4
35 7200000199 行星齿轮 PLATE GEAR 4
36 7200000165 差速器右壳 RIGHT CASE DIFFERENTIAL 1
37 7200000162 半轴齿轮垫 THRUST WASHER 2
38 7200000161 半轴齿轮 SPIDER GEAR 2
39 7200000164 差速器行星齿轮轴 CARDEN SHAFT 2
40 7200000163 差速器壳螺栓 BOLT 8
41 7200000167 差速器左壳 LEFT CASE DIFFERENTIAL 1
