Description

Lifting arm 29150022912 ROCKER ARM 29150012281 CONNECTING ROD 4043001540 SDLG L956F L955F Loader part

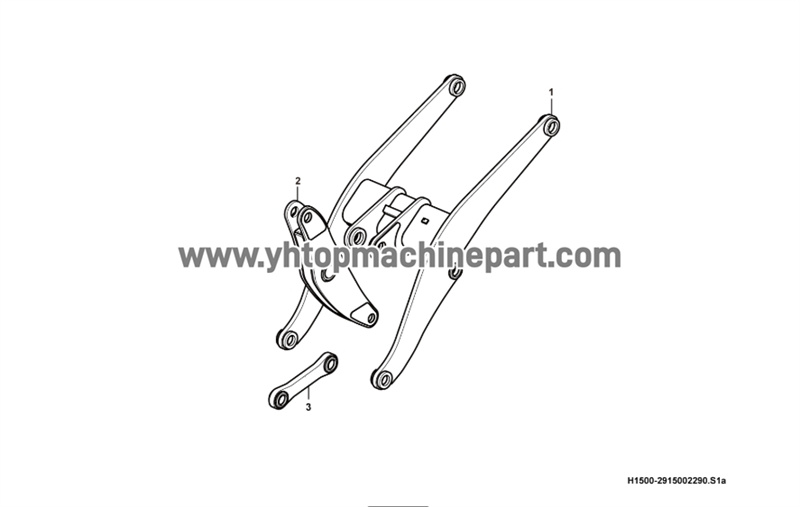

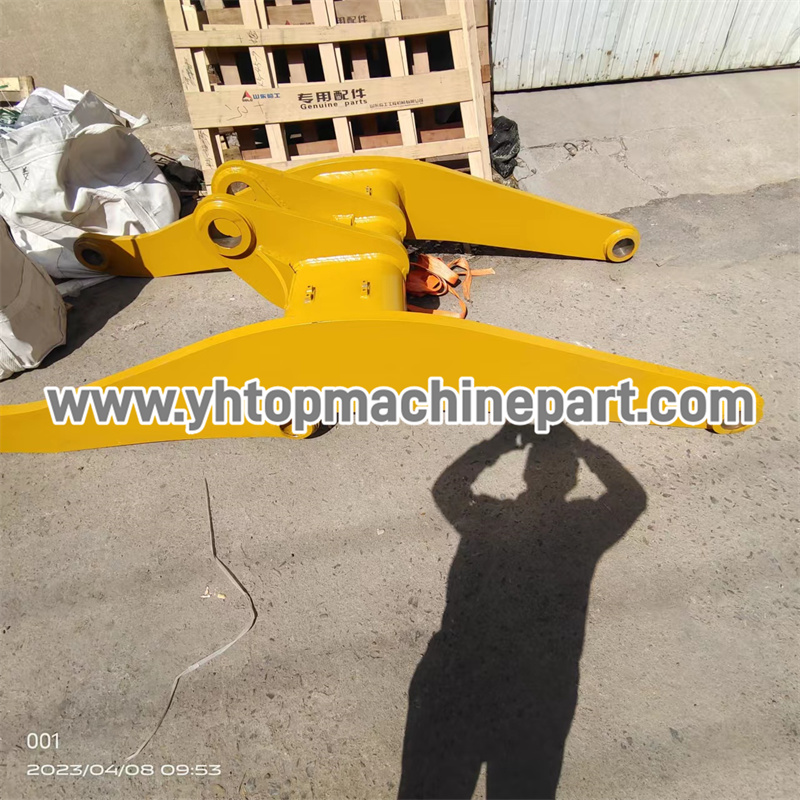

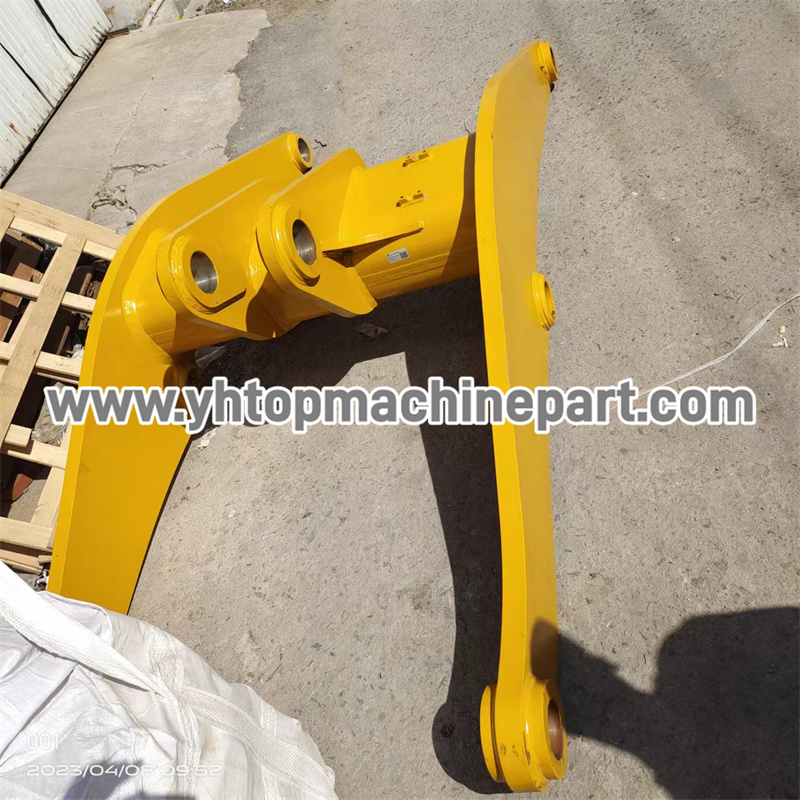

1 动臂LL2810A Lifting arm 29150022912
2 摇臂 ROCKER ARM 29150012281
3 连杆LGB317-B648*100*113-46*124 CONNECTING ROD 4043001540

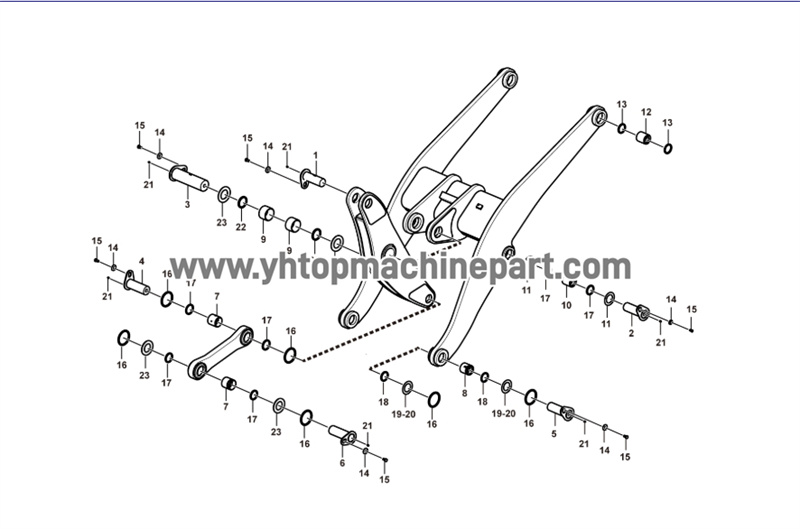

1 销轴LGB301-95*130*240-1000Y WELD PIN 4043001506
2 销轴LGB301-85*115*210/2G-40Cr WELD PIN 4043000728
3 销轴LGB301-110*212*405-1300Y WELD PIN 4043001422
4 销轴LGB301-85*130*240-1000Y WELD PIN 4043001507
5 销轴LGB301-80*140*260-40Cr WELD PIN 4043000173
6 销轴LGB301-85*142*265-1000Y WELD PIN 4043001505
7 轴套LGB302-85*95C2 BUSHING 4043001508
8 轴套LGB302-80*90A2 BUSHING 4043000026 LGB302-80*90A2
9 轴套LGB302-110*80C1 BUSHING 4043000467
10 轴套LGB302-85*80C2 BUSHING 4043000439
11 垫片LGB303-85*130*1 SHIM 4043000035 ZL50F.7-12
12 轴套LGB302-95*104C2 BUSHING 4043000752
13 防尘圈LGB307-95 SEALING RING 4043000057 ZL50G.7.8
14 垫圈LGB001-16flZnyc-480 WASHER 4040000051
15 螺栓GB5783-M16*30flZnyc-8.8-480 SCREW 4011001261
16 O形圈LGB308-128*12 O-RING 4043000059 ZL50F.7-7
17 防尘圈LGB307-85 SEALING RING 4043000056 ZL50G.7.4
18 防尘圈LGB307-80 SEALING RING 4043000055 ZL40G.7.6
19 垫片LGB303-80*130*1 SHIM 4043000033 LGB303-80*130*1
20 垫片LGB303-80*130*2 SHIM 4043000034 LGB303-80*130*2
21 油杯JB7940.1-M10*1 LUBRICATING NIPPLE 4030000065
22 防尘圈LGB307-110 SEALING RING 4043000058 LGB307-110
23 垫片LGB303-110*180*1 SHIM 4043000043 LGB303-110*180*1

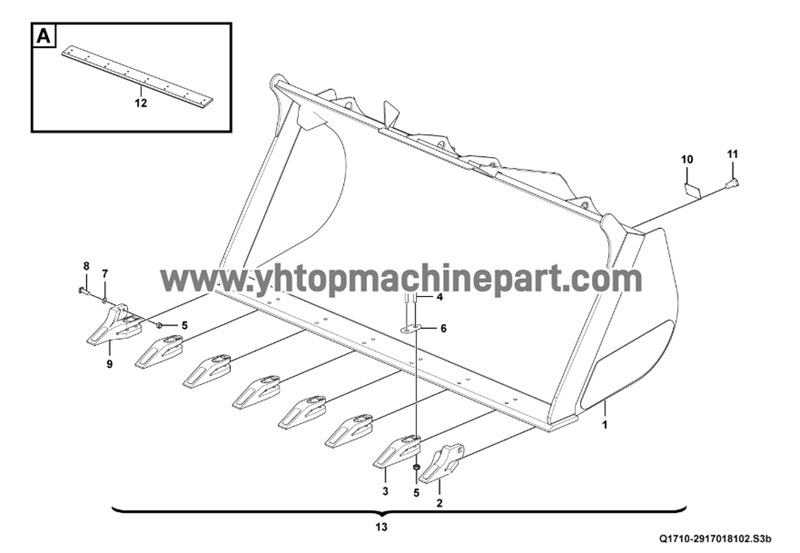

1 铲斗3.0*3016 Bucket 29170181033
2 左边齿 BUCKET TOOTH 29170039951
3 斗齿 BUCKET TOOTH 29170039941
4 螺栓 BOLT 29170019711
5 螺母GB6170-M20EpZn-8 NUT 4013000020
6 斗齿调整垫 SHIM 29170020531
7 垫圈GB97.1-20EpZn-300HV WASHER 4015000176
8 螺栓 BOLT 29170019701
9 右边齿 BUCKET TOOTH 29170039961
10 铲斗铭牌 Name plate 29170105791
11 铆钉GB827-3*5-BL2 RIVET 4019000012
12 主刀板-锰钢 CUTTING EDGE 29170039971
13 铲斗总成BG300 Bucket 29170181023
