Description

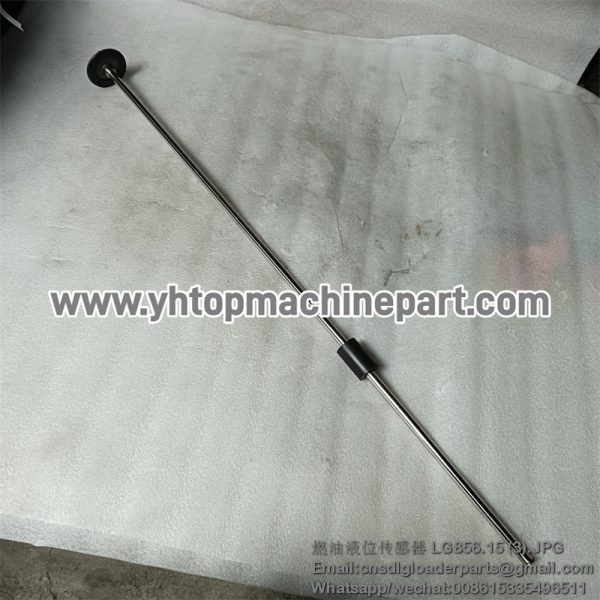

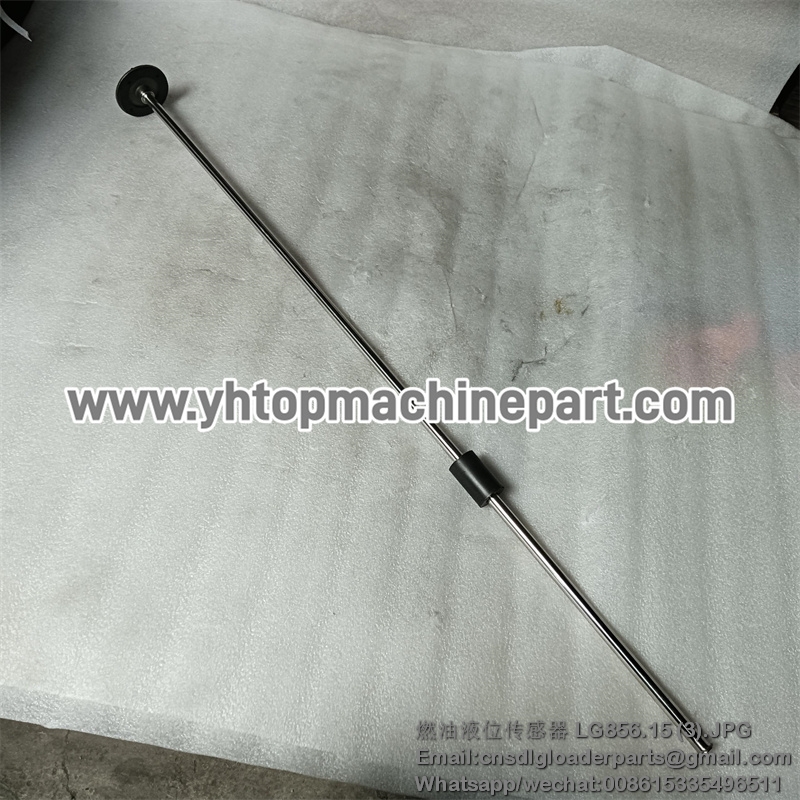

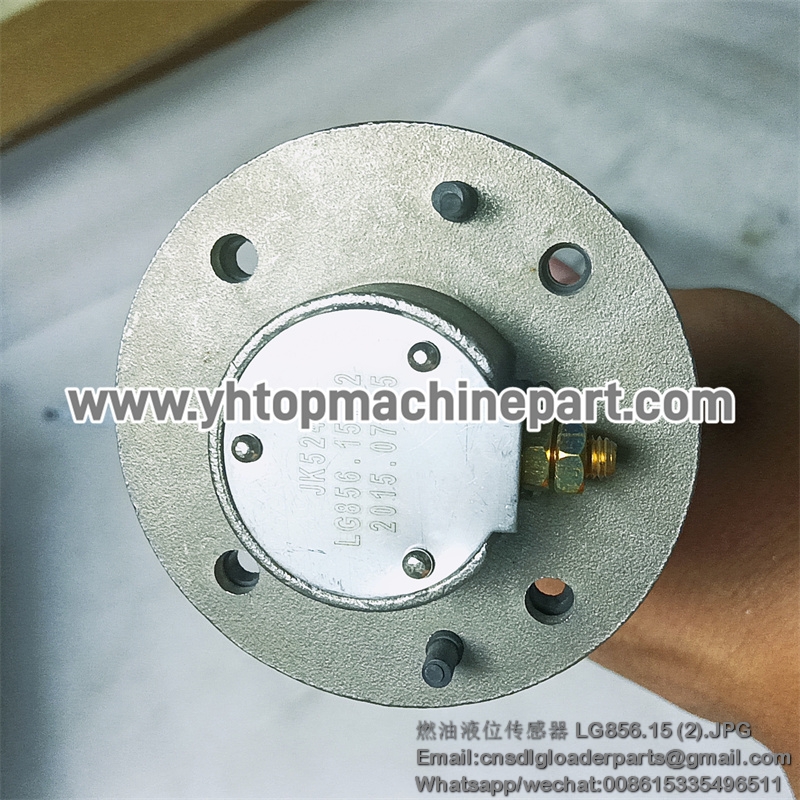

LG856.15.32 Fuel level sensor for Longking CDM856 and CDM858 wheel loaders

Serial No Part Number Part Name Part Model
1 LG853.02.02-001 Hinged bolt 402002A
2 LG855.02.02-001 Adapter 306016D
3 180H-270°-90H-25/28-Ⅰ-L1080 Rubber pipe from converter to filter
4 90H-H/25/28-IIBZ-25/18BG-L750 Rubber pipe from filter to converter
5 90H-45Q/25/28-Ⅰ-L2500 Rubber pipe from cooler to converter
6 90H-330°-90Q/25/28-Ⅰ-L2300 Rubber pipe from converter to cooler
7 JB1002-77 Washer 27
8 LG853.02.02-002 Adapter 402014B
9 JB1002-77 Washer 27
10 GB/T5783 Bolt M10
11 GB/T6170 Bolt for cover plate
12 GB/T93 Washer 10
13 GB/T97.1 Washer 10
14 LG855.02.02.01 Double transmission oil filter YFL-A400X25LS-G

Serial No Part Number Part Name Part Model
1 GB/T93 Washer 10
2 GB/T6170 Bolt for cover plate
3 LG853.03-001 Curved washers
4 LG853.03-002 Rubber pad
5 GB/T5782 Bolt for cover plate
6 LG856.03.01 Transmission assembly
7 GB5783 Bolt M10
8 GB/T97.1 Washer 10
9 GB/T93 Washer 10

Serial No Part Number Part Name Part Model
1 LG853.03.01.01 1st shaft assembly 403100
2 LG853.03.01-001 Middle cover seal gasket 403001A
3 LG853.03.01-002 End plate 403002B
4 LG853.03.01-003 Middle plate 403002A
5 LG50EX.03.01.02 3rd shaft assembly 403500
6 LG853.03.01-004 Screw plug 403062
7 GB1235-76 O-ring
8 GB/T5782 Bolt for cover plate
9 GB/T5782 Bolt for cover plate
10 GB/T5782 Bolt for cover plate
11 LG853.03.01-005 Housing 403005A
12 LG853.03.01.02 2nd shaft assembly 403200
13 LG853.03.01-006 1st gear oil cylinder body 403004A
14 LG853.03.01.06 1st gear piston assembly 403006A-010A
15 GB/T5782 Bolt for cover plate
16 LG853.03.01.07 Reverse 1st gear drive plate assembly 403012-013
17 LG853.03.01-007 Reverse 1st gear driven plate 403011
18 GB/T893.1 Retaining ring 90
19 LG853.03.01-008 Fixing plate 403023
20 LG853.03.01.08 Clutch Anchor assembly 403014-015
21 LG853.03.01-009 Cylindrical pin 403022
22 LG853.03.01-010 Spring pin shaft 403016
23 LG50EX.03.01.01 4th shaft assembly 403300
24 LG853.03.01-011 Spring 403017
25 LG853.03.01.09 Reverse piston assembly 403018A-020A
26 LG853.03.01-012 Seal gasket 403021
27 LG853.03.01.10 Transmission pump assembly 403600
28 LG853.03.01-013 Steering pump drive gear 403056
29 GB/T894.1 Retaining ring 90
30 LG853.03.01-014 Steering oil pump drive shaft 403055D
31 GB/T1096 Key 14×36
32 GB/T276 Ball bearing 6210N 55×100×21
33 LG853.03.01-015 Bearing bushing 403057
34 GB/T5782 Bolt for cover plate
35 GB/T276 Ball bearing 6210N 55×100×21
36 LG853.03.01-016 Seal gasket 403058
37 GB/T93 Washer 10
38 GB/T6170 Bolt for cover plate
39 GB/T898 Stud bolt
40 LG855.03.01-002 Brake pad LG50F.09004A
41 GB/T5786 Bolt M16x1.5×45
42 GB/T93 Washer 10
43 GB/T97.1 Washer 10
44 LG855.03.01.03 Caliper disk brake TC5Z(A)
45 GB/T93 Washer 10
46 LG853.03.01.04 Oil pan assembly 403400
47 LG855.03.01-001 Caliper fixing plate 403000-1
48 GB/T5782 Bolt for cover plate
49 GB/T93 Washer 10
