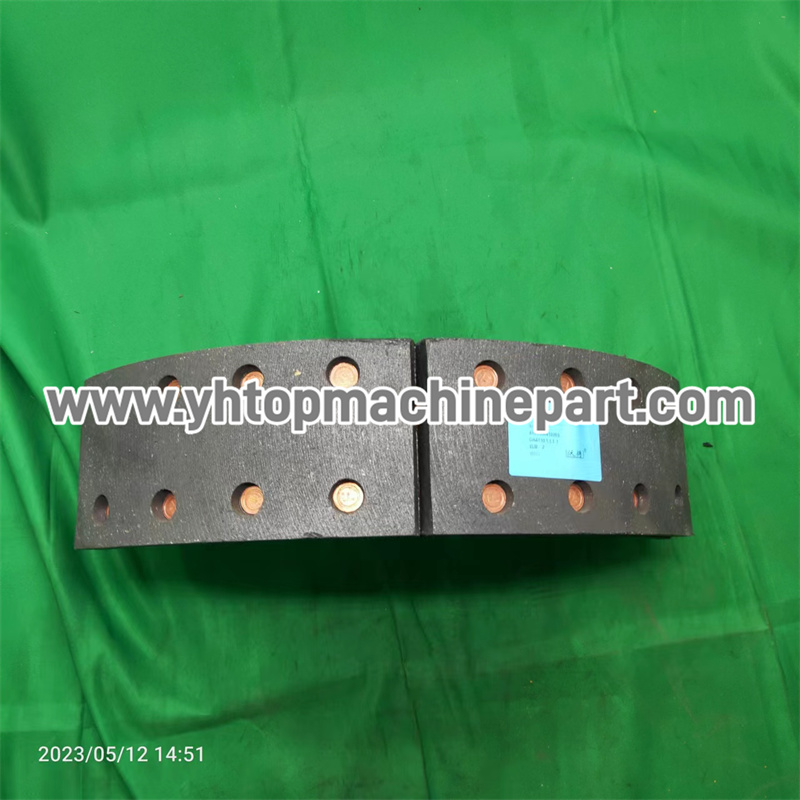

Drum brake 4190004412 Friction disc 4190004412001 Brake shoe 4190004412003 sdlg G9190 G9180 Grader parts

1 圆螺母M75*2 Round nut 28100011811
2 挡板 Plate 28100011831
3 垫圈GB1230-14EpZn-45 PLAIN WASHER 4015000358
4 螺栓GB5786-M14*1.5*40flZnyc-10.9-480 Bolt 4011001363
5 调整垫片 Shim 28100011841
6 调整垫片 Shim 28100011851
7 调整垫片 Shim 28100011861
8 调整垫片 Shim 28100011871
9 调整垫片 Shim 28100011881
10 支承套 Sleeve 28100011761
11 前链轮 Chain gear 28100011791
12 O形圈GB3452.1-95*2.65G O-RING 4030000943
13 密封套 Sealing sleeve 28100011751
14 骨架油封HG4-692-PD130*160*12 SEALING RING 4030000046
15 滚动轴承GB297-33019 Roller bearing 4021000462
16 连接盘 Connecting flange 28100011771
17 O形圈GB3452.1-475*7.00G-FPM O-ring 4030000258
18 磁性螺塞 Plug 28100007101
19 垫圈JB982-24 WASHER 4015000122

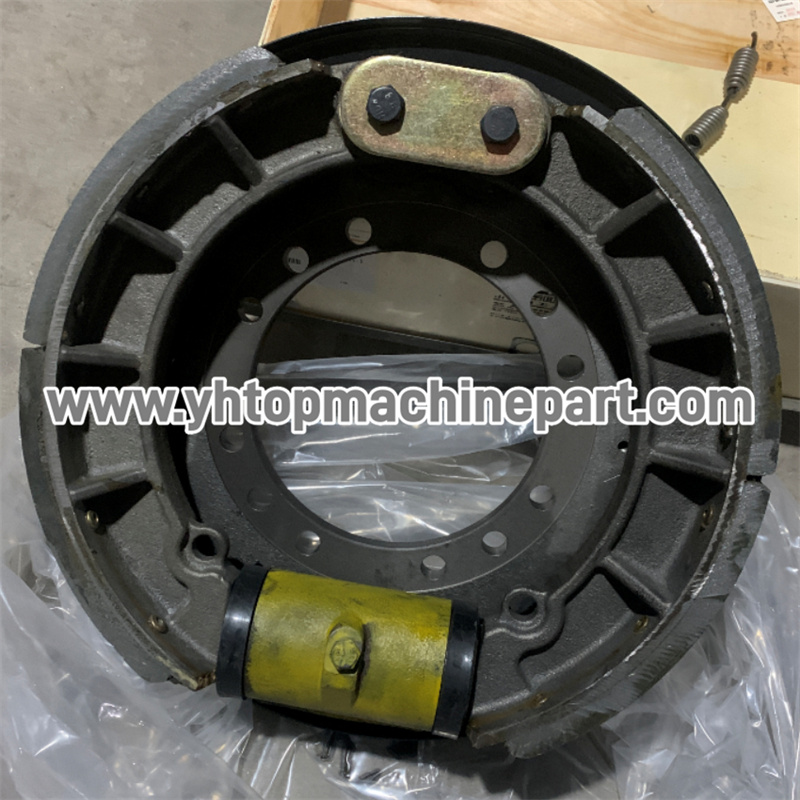

20 制动器总成 Drum brake 4190004412
21 制动鼓 Brake drum 28100011741
22 轮辋螺母M22 Nut 29070022331
23 轮辋螺栓M22*1.5*84 Screw 28100006611
24 盒式油封cassette3-145*175*14.5 Sealing ring 4190003264
25 隔套 Spacer sleeve 28100011821
26 驱动轴 Drive shaft 28100011731
27 滚动轴承GB297-33020 Roller bearing 4021000463
28 P-螺钉GB70.1-M16*45EpZn-12.9 Screw 4014000672
29 垫圈GB93-16-65Mn SPRING WASHER 4015000098
30 螺钉GB819.2-M10*25 Screw gb819.2-m10*25 4014000401

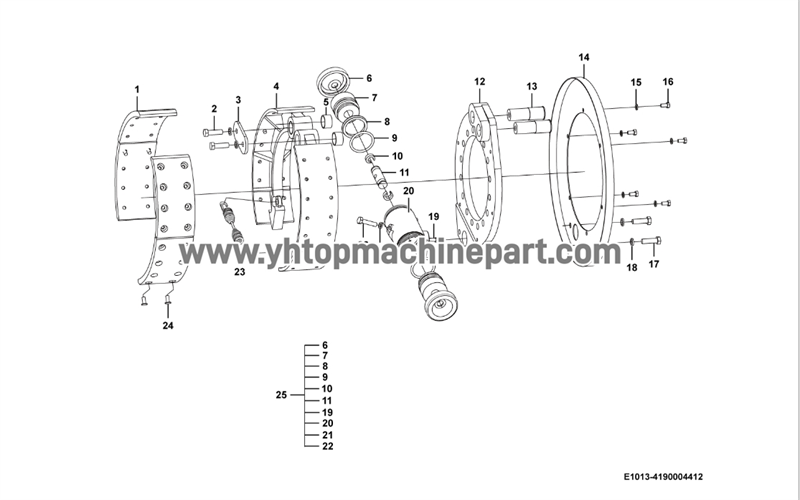

1 摩擦片DA4110.1.1.1-2 Friction disc 4190004412001
2 螺栓GB5783-M12*25EpZn-8.8 BOLT 4011000197
3 垫板DA4120.1.1-4 Plate 4190004412002

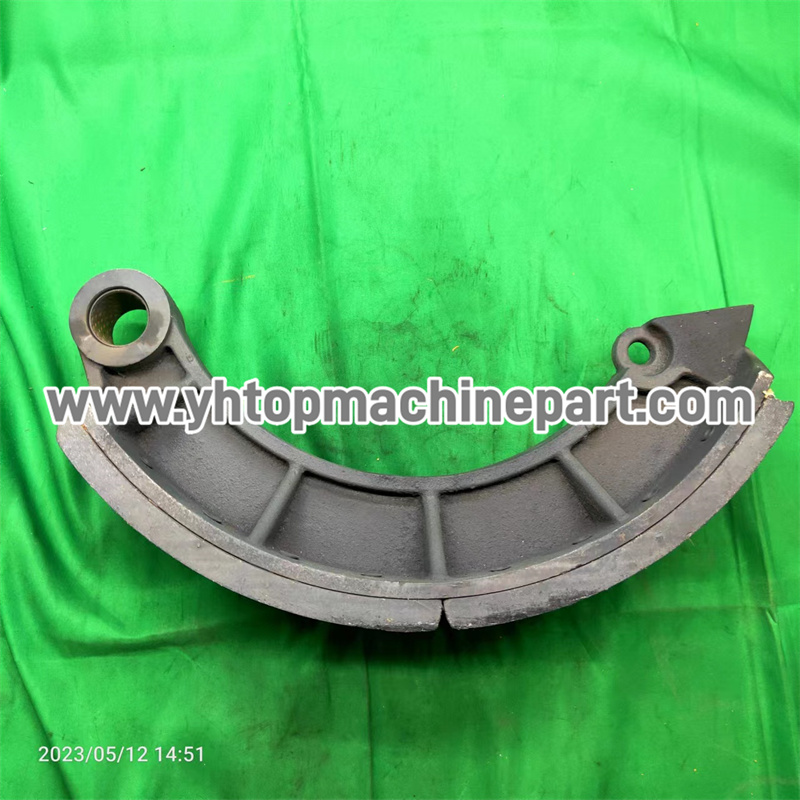

4 制动蹄DA4110.1.1.1-1 Brake shoe 4190004412003
5 铜套DA4120.1.1-5 Sleeve 4190004412004
6 泵体防尘罩84787113 Dust cover 4190004412005
7 活塞74787112 Piston 4190004412006
8 Yx型密封圈84787114 Sealing ring 4190004412007
9 O型密封圈84787049 Sealing ring 4190004412008
10 限位圈84787116 Retaining ring 4190004412009
11 轴84787120 Shaft 4190004412010
12 制动底板DA4110.1.1-2 Plate 4190004412011
13 销轴DA4120.1.1-3 Pin 4190004412012
14 防尘罩HQLB-002.1-1 Dust cover 4190004412013
15 垫圈GB93-8-65Mn SPRING WASHER 4015000036
16 螺栓GB5783-M8*16EpZn-8.8 BOLT 4011000102
17 螺栓GB5783-M12*30EpZn-8.8 BOLT 4011000089
18 垫圈GB93-12-65Mn SPRING WASHER 4015000026
19 放气嘴84787119 Nipple 4190004412014
20 泵体84787111 Pump body 4190004412015
21 组合垫圈1084787119 Washer 4190004412016
22 分泵定位螺钉84787117 Screw 4190004412017
23 回位弹簧84787104 Return spring 4190003578003
24 铆钉56510007 Rivet 4190004412018
25 制动分泵总成 Pump 4190004412020
