Description

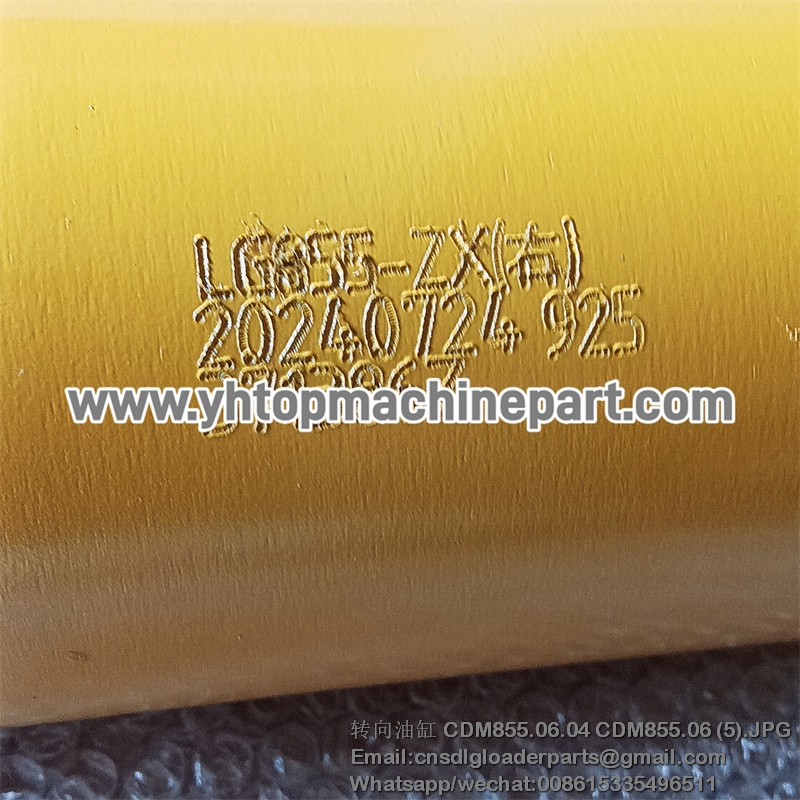

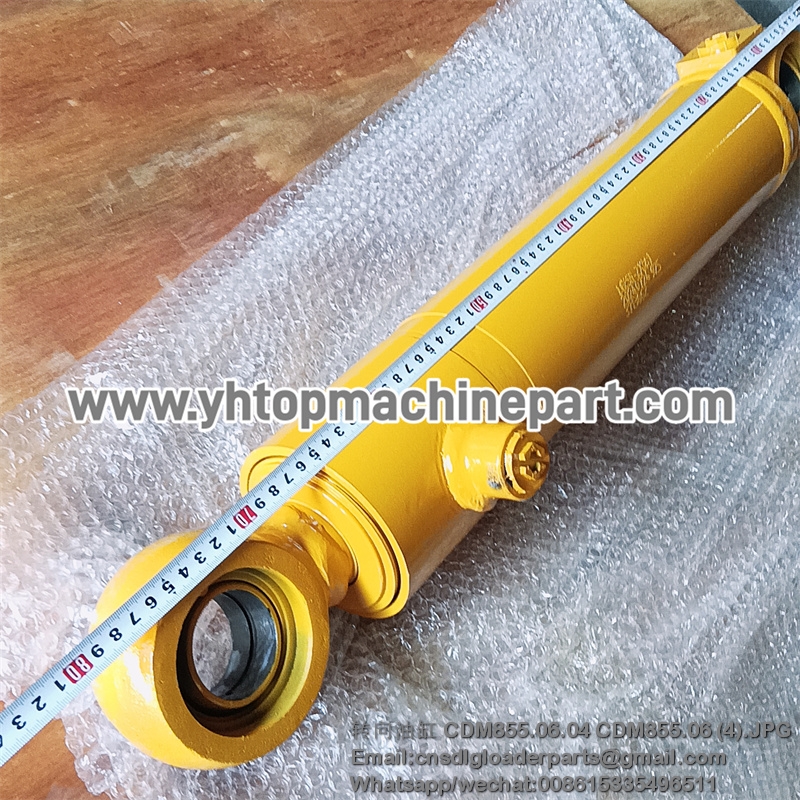

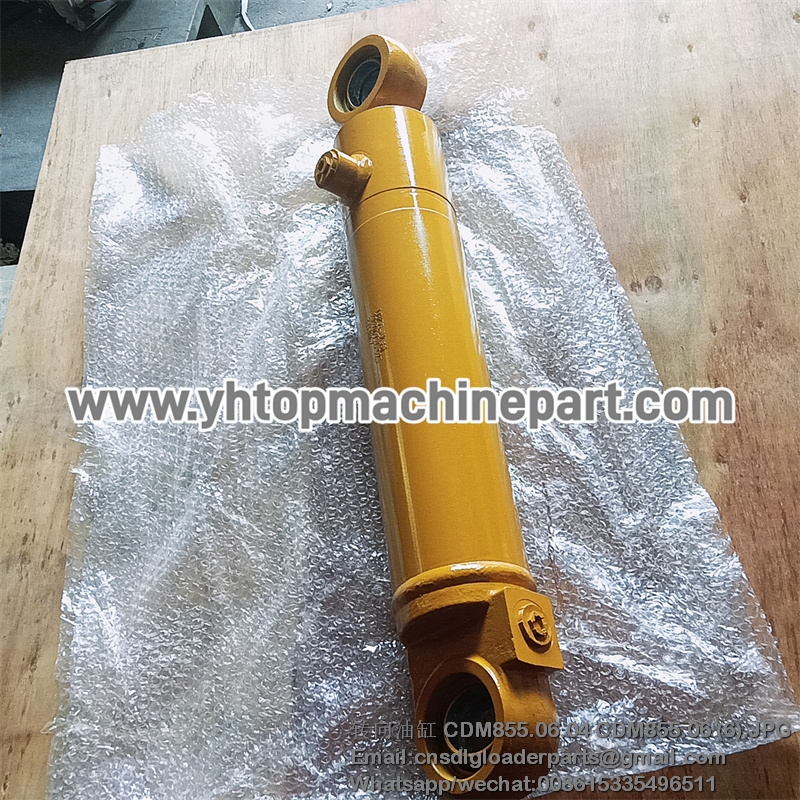

CDM855.06.04 CDM855.06.03 Steering Cylinder LONKING CDM856 Loader Part

1 GB/T5783 螺栓 M10×30 Bolt M10×30 4
2 GB/T93 垫圈 10 Washer 10 24
3 GB/T97.1 垫圈 10 Washer 10 4
4 LG856.06I.02 全液压转向机 Hydraulic steering gear 1
5 LG853.06-003 转向机接头体 Steering gear adapter 4 506001C
6 JB1002-77 垫圈 20 Washer 20 4
7 LG853.06-004 压板 Press plate 1
8 GB/T5783 螺栓 M10×42 Bolt M10×42 2
9 90F-F/25/28-2S-L940 优先阀分流胶管 Priority valve distributing hose 1
10 GB1235-76 O 形圈 38×3.5 O-ring 38×3.5 1
1190H-F(32)/25/28-2S-L570优先阀进油胶管 Priority valve oil inlet hose 1
12 GB1235-76 O 形圈 45×3.5 O-ring 45×3.5 3
13 LG853.07-007 压板 Press plate 3
14 GB/T5783 螺栓 M10×35 Bolt M10×35 20
15 P5100-F80NL457.97G 转向泵 Steering pump 1
16 LG853.06-001 密封垫 Gasket 1
17 H-H/19/18-I-L3600 转向机至冷却器胶管 Hose from steering gear to cooler 1
18 H-H/19/18-I-L2300 冷却器回油胶管 Cooler oil return hose 1
19 LG855.02.02-001 接头体 Adapter 2 306016D
20 JB1002-77 垫圈 27 Washer 27 2
21 GB/T93 垫圈 12 Washer 12 12
22 GB/T97.1 垫圈 12 Washer 12 423 GB/T6170 螺母 M12 Nut M12 8
24 GB/T3452.1-1992 O 形圈 46.2×3.55 O-ring 46.2×3.55 1
25 GB/T5783 螺栓 M12×40 Bolt M12×40 4
26 LG855.06.01 转向泵进油钢管 Steering pump oil inlet pipe 1 506002-003C
27 LG855.06.02 转向泵出油钢管 Steering pump oil outlet pipe 1 506004-004C
28 φ51×4-L520 吸油胶管 Oil suction hose 1
29 JB/T8870-1999 喉箍(φ55—71) Hoop (φ55—71) 2
30 LG855.06.04 后车架转向过渡钢管 Rear frame turning transition pipe 1 506005-006C(long)
31 LG855.06.05 后车架转向过渡钢管 Rear frame turning transition pipe 1 506005-006C(short)
32 LG853.06-005 后车架转向过渡接头压板 Rear frame turning transition connector press plate 2 506007C
33 H-H/19/18-II-L1252 转向机 AB 口出油胶管 Steering gear port A,B oil outlet hose 2
34 H-H/19/18-II-L1152 转向油缸进油胶管 Steering cylinder oil inlet hose 2
35 90H-H-8/8- Ⅱ -L800 (M14×1.5) 转向传感/优先阀泄漏胶管 Steering sensing/priority valve l eakage hose 2
36 LG855.06.06 右转向油缸小腔钢管 Right steering cylinder small chamber pipe 1 LG50F.06004-004A
37 JB999-77 管接头用铰接螺栓 M22× 1.5×48 Articulating bolt for pipe connector M22×1.5×48 4
38 JB1002-77 垫圈 22 Washer 22 8
39 LG856.06.15 左转向油缸 Left steering cylinder 2
40 H-H/19/18-II-L685 转向油缸间胶管 Hose between steering cylinder 4
41 LG855.06.07 右转向油缸大腔钢管 Right steering cylinder big chamber pipe 1 LG50F.06001-003A
42 LG855.06.08 左转向油缸大腔钢管 Left steering cylinder big chamber pipe 1 LG50F.06005-005A
43 GB/T3452.1-1992 O 形圈 50×5.3 O-ring 50×5.3 8
44 GB/T3452.1-1992 O 形圈 65×5.3 O-ring 65×5.3 8
45 LG855.06-001 转向油缸连接密封座 Steering cylinder connecting bracket 8 LG50F.06301A
46 LG855.06.09 前车架右转向过度钢管 Front frame turning right transition pipe 1 LG50F.06007-007A
47 LG855.06.10 前车架左转向过度钢管 Front frame turning left transition pipe 1 LG50F.06008-008A
48 GB3733.2-83 卡 套 式 端 直 通 接 头 体 G8(M14×1.5)Insert type straight connector G8(M14×1.5)3
49 JB1002-77 垫圈 12 Washer 12 3
50 LG855.06.11 左转向油缸小腔钢管 Left steering cylinder small chamber pipe 1 LG50F.06006-006A
51 90H-H/19/18-II-L550 优先阀至转向机胶管Hose from priority valve to steering gear
52 LG853.06-006 优先阀出油接头体 Priority valve oil outlet adapter 1 506009C
53 JB1002-77 垫圈 33 Washer 33 1
54 GB/T5782 螺栓 M10×100 Bolt M10×100 2
55 LG853.06.10 优先阀 Priority valve 1 YXL-F250F-N7
56 LG856.06.16 右转向油缸 Right steering cylinder 1
