Description

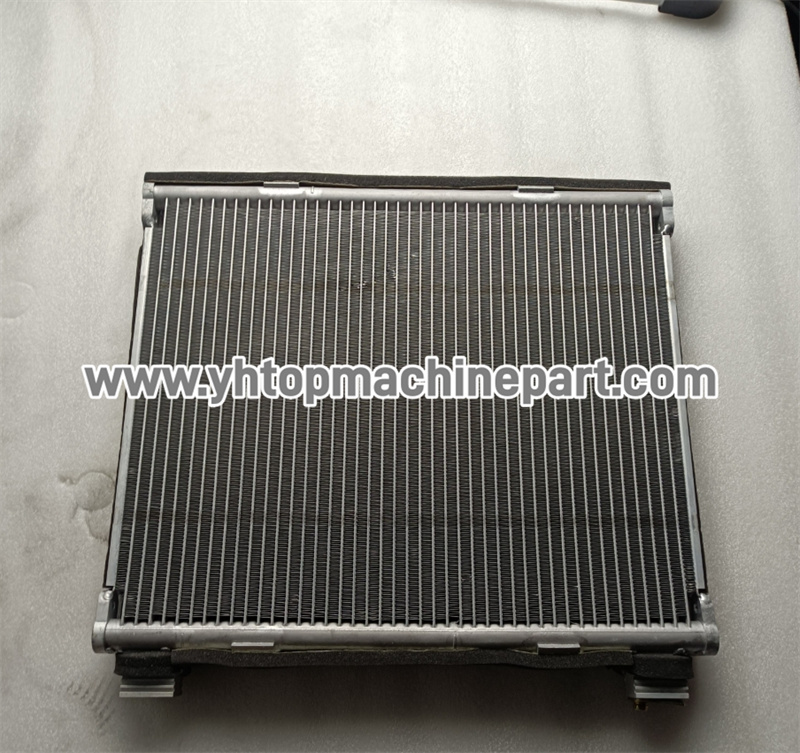

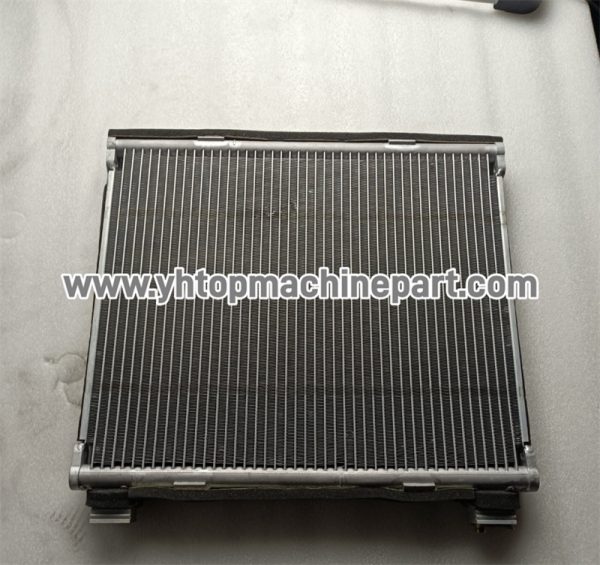

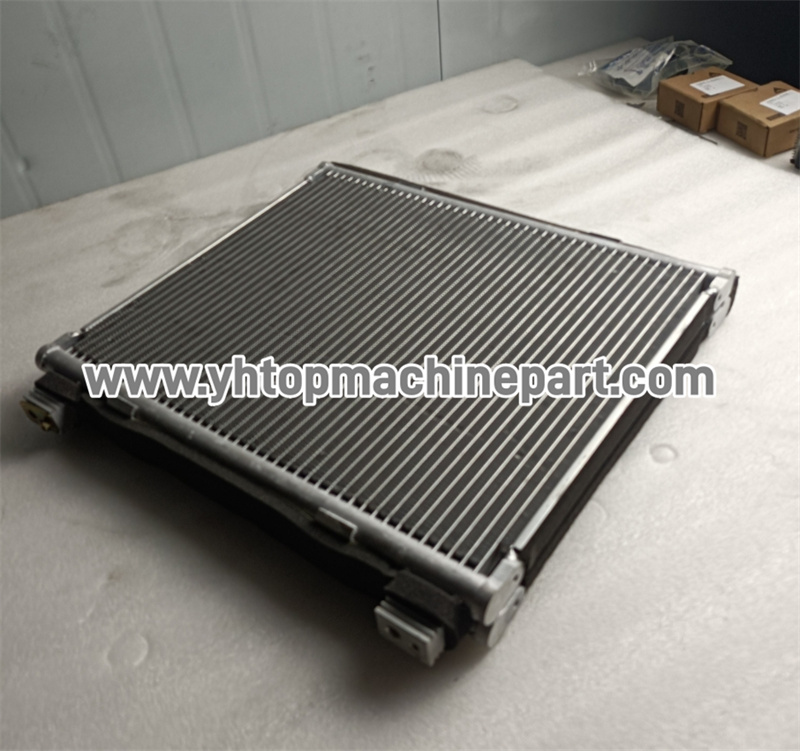

4130002453002 AC Condenser for SDLG Wheel loader L956FH L958F L968F Loader

1 储液器 RESERVOIR 4190002863
2 储液器保护架GKL33-5.0H1-20 BRACKET 4130002453001
3 储液器卡箍GKL33-5.0H1-30 CLAMP 4190002907006
4 P-螺栓GB5783-M6*25-8.8 SCREW 4011000778
5 冷凝风机GKL33-5.0H-30 FAN 4190002907003
6 冷凝器GKL33-5.0H1-40 CONDENSER 4130002453002
7 螺栓GB5783-M6*12EpZn-8.8 SCREW 4011000423
8 冷凝器壳体GKL33-5.0H5-20 HOUSING 4130002453003
9 螺栓GB5783-M6*20EpZn-8.8 BOLT 4011000101
10 螺母GB889.1-M6EpZn-8 NUT 4013000211
11 连接管组件GKL33-5.0H1-60 PIPE 4130002453004
12 螺栓GB5783-M6*30EpZn-8.8 SCREW 4011000291
13 出风板GKL33-5.0H5-01 PLATE 4130002453005
14 进风罩组件GKL33-5.0H1-70 RETURN STRAINER 4130002453006

1 压缩机 COMPRESSOR 4190002695
2 螺栓GB5783-M8*30EpZn-8.8 BOLT 4011000107
3 垫圈GB93-8-65Mn SPRING WASHER 4015000036
4 垫圈GB97.1-8EpZn-300HV WASHER 4015000072
5 蒸压管 HOSE 4190003109
6 压冷管 HOSE 4190003108
7 蒸发器总成 Evaporator 4130002911
8 扎丝 LG13-ZS4*185 CABLE TIE 4019000023
9 排水管组件 WATER PIPE 4190002766
10 冷凝器总成 CONDENSER 4130002453
11 贮蒸管 HOSE 4190003088
12 空调线束 WIRING HARNESS 4190002761
13 压力开关 SWITCH 4190002765
14 螺栓GB5783-M6*25EpZn-8.8 BOLT 4011000276
15 垫圈GB93-6-65Mn SPRING WASHER 4015000035
16 垫圈GB97.1-6EpZn-300HV WASHER 4015000207
17 控制面板 Panel 4130002912
1 扎丝LG13-ZS3*150 CABLE TIE 4190000019
2 橡胶套 RUBBER SLEEVE 29310022301
3 出水管 WATER PIPE 29350010211
4 进水管 WATER PIPE 29350010201
5 支架 BRACKET 29350012571
6 空调接口风道 AIR DUCT 29290012761
7 支架 BRACKET 29350010241
8 螺栓GB16674-M8*20EpZn-8.8 BOLT 4011000458
9 螺栓GB16674-M6*12EpZn-8.8 SCREW 4130000075
10 过渡管 COPPER TUBE 29350010291
11 环箍QC390-D26 CLAMP 4017000024
12 螺栓GB16674-M10*25EpZn-8.8 BOLT 4011000474
13 走线胶套 RUBBER COVER 28250005602
14 空调系统 Air conditioning unit 29350012772
15 管夹LGB169-B35*12.5 Clamp 4041002418
16 螺栓GB16674-M8*16EpZn-8.8 BOLT 4011000461
17 铝箔 PROTECTING MAT 29290025291
18 螺栓GB5782-M8*100EpZn-8.8 BOLT 4011000720
19 垫圈GB97.1-8EpZn-300HV WASHER 4015000072
20 皮带8PK1175 Belt 29350011651
21 螺栓GB16674-M8*16EpZn-8.8 BOLT 4011000461
