Description

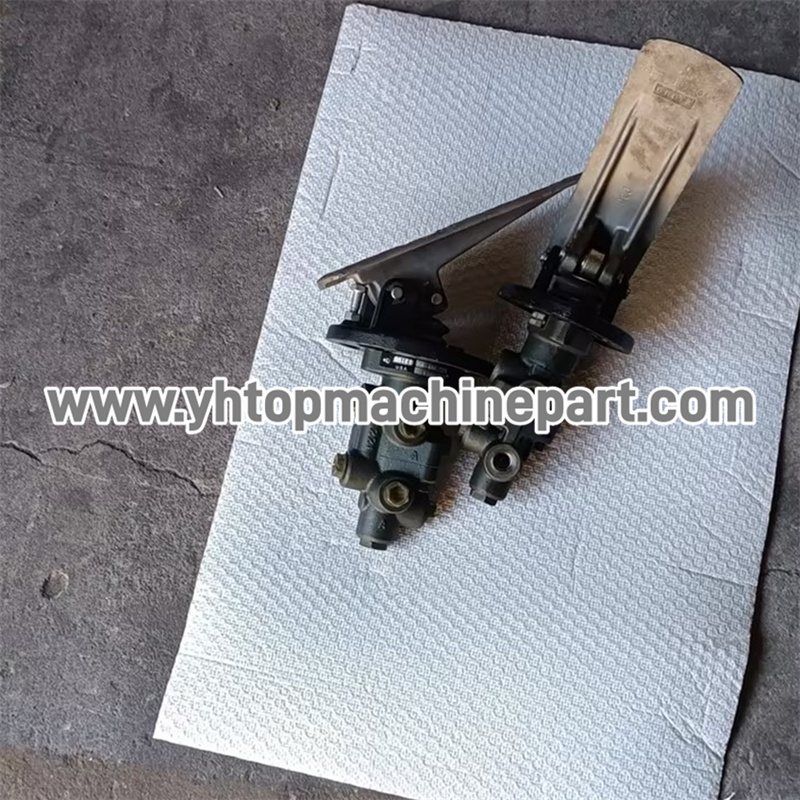

4120004420 Brake valve SDLG L938 L936 LG946L Loader part

J2200-2922020292.1:行车制动总成-53

L936 sdlg wheel loader

J2200-2922020292.1:行车制动总成-53
J2200-2922020292.1:Service brake assembly

1 桥油管B Brake pipe 29220025941
2 组合接头LGB143-01608 NIPPLE 4041001023
3 三通接头 THREE-WAY NIPPLE 29220007831
4 螺栓GB16674.1-M8*30flZnyc-8.8-480 SCREW 4011001301
5 软管LGB127-404076 HOSE 4041001663
6 桥油管A Brake pipe 29220025961
7 制动尾灯压力开关 SWITCH 4120004340
8 接头块 BLOCK 29220009221
9 螺栓GB16674.1-M8*45flZnyc-8.8-480 SCREW 4011001305
10 接头GE10L7/16UNFOMDCF NIPPLE 4120002330
11 至后桥油管 HOSE ASSEMBLY 29220013961
12 护罩弯板总成 PLATE 29220013251
13 护罩直板 PLATE 29220013271
14 螺栓GB5783-M8*12flZnyc-8.8-480 SCREW 4011001314
15 垫圈GB96.1-8flZnyc-300HV-480 WASHER 4015000425
16 蓄能器支架 Bracket 29220024961
17 螺栓GB5783-M10*30flZnyc-8.8-480 SCREW 4011001249
18 螺母GB6170-M10flZnyc-8-480 NUT 4013000370
19 垫圈GB97.1-10flZnyc-300HV-480 WASHER 4015000433
20 直接头 NIPPLE 29220010271
21 U形螺栓 U-BOLT 29220010301
22 垫圈GB97.1-8flZnyc-300HV-480 WASHER 4015000430
23 螺母GB889.1-M8flZnyc-8-480 NUT 4013000384
24 缓冲套 RUBBER SLEEVE 29220010311
25 蓄能器NXQ-A-1.6/31.5-L-Y ACCUMULATOR 4120004659
26 橡胶垫 RUBBER MAT 28180003171
27 至前桥制动油管 HOSE ASSEMBLY 29220016251
28 螺栓GB16674.1-M8*12flZnyc-8.8-480 SCREW 4011001313
29 管夹LGB169-A25*12.5 CLAMP 4041002384
30 三通接头EL12LOMDA3C THREE-WAY NIPPLE 4190000143
31 接头GE12L9/16UNFOMDA3C NIPPLE 4190000147
32 接头EW12LOMDA3C NIPPLE 4190000141
33 串联踏板阀06-466-238 BRAKE VALVE 4120004420
34 螺栓GB16674.1-M8*35flZnyc-8.8-480 SCREW 4011001277
35 软管LGB128-405039 HOSE ASSEMBLY 4041001837
36 软管LGB128-005108 HOSE ASSEMBLY 4041002250
37 软管LGB124-005160 HOSE 4041001626
38 接头GE12L3/4UNFOMDA3C NIPPLE 4190000149
39 软管LGB125-005034 Hose assembly 4041002060
40 支架 Bracket 29220028061
41 螺栓GB16674.1-M10*20flZnyc-8.8-480 SCREW 4011001294
42 双路充液阀06-463-432 CHECK VALVE 4120004397
43 螺栓3/8-16UNC SCREW 29220018821
44 直接头1-1/16-12UN-M18 NIPPLE 29220017621
45 软管LGB127-005030 Hose assembly 4041003355
46 直接头LGB120-03028 NIPPLE 4041000188
47 O形圈LGB168-02331 O-RING 4041001695
48 软管LGB128-005055 Hose assembly 4041002709
49 回油钢管 Pipe 29220028461
50 固定板 ANCHOR PLATE 29120016021
51 变径接头 NIPPLE 29220012581
52 O形圈GB3452.1-43.7*2.65G O-RING 4030000894
53 压力油过滤器PLF-H110*10 HYDRAULIC FLUID FILTER 4120004417
54 过渡板A Plate 29290061441
55 螺栓GB16674.1-M8*16flZnyc-8.8-480 SCREW 4011001297
56 压力油过滤器滤芯LH0110D010BN/HC FILTER INSERT 4120004417001
