Description

4120001827008 JF.A.ZL15.07 CYLINDER PISTON JF.A.ZL15.03 FRICTION DISC 4120001827001 DISC BRAKE 4120001827 sdlg LG918 LG920 wheel loader

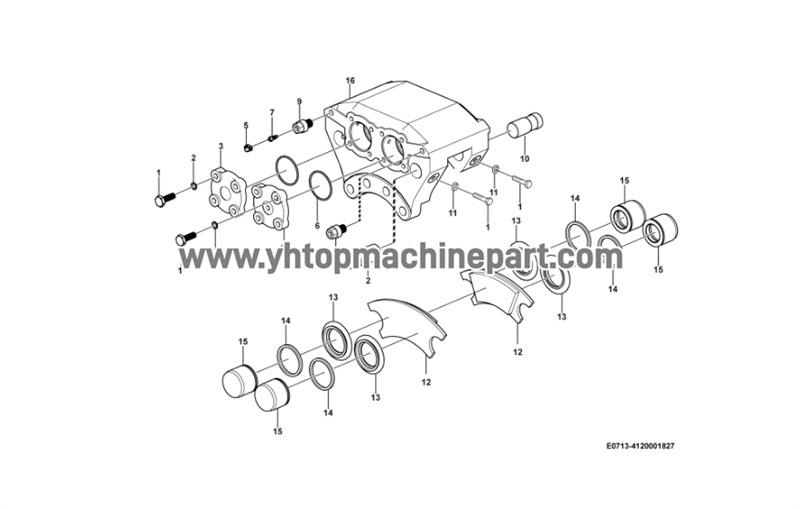

1 螺栓GB5783-M10*30EpZn-8.8 BOLT 4011000084
2 垫圈GB93-10-65Mn SPRING WASHER 4015000025
3 封油分泵盖JF.A.ZL15.08 PUMP COVER 4120001827009
4 进油分泵盖JF.A.ZL15.06 PUMP COVER 4120001827006
5 防漏垫圈 WASHER 4120001827010
6 O形圈JB7757.2-50*3.1 O-RING 4030000747
7 放气嘴 NIPPLE 4120001740
8 孔塞JF.A.ZL15.09 PLUG 4120001827007
9 放气嘴座JF.A.ZL15.10 SEAT 4120001827011
10 销轴JF.A.ZL15.02 PIN 4120001827003
11 螺母GB6170-M10EpZn-8 NUT 4013000007
12 摩擦片总成JF.A.ZL15.03 FRICTION DISC 4120001827001
13 防尘罩JF.A.ZL15.04 DUST COVER 4120001827004
14 矩型圈JF.A.ZL15.05 SEALING RING 4120001827005

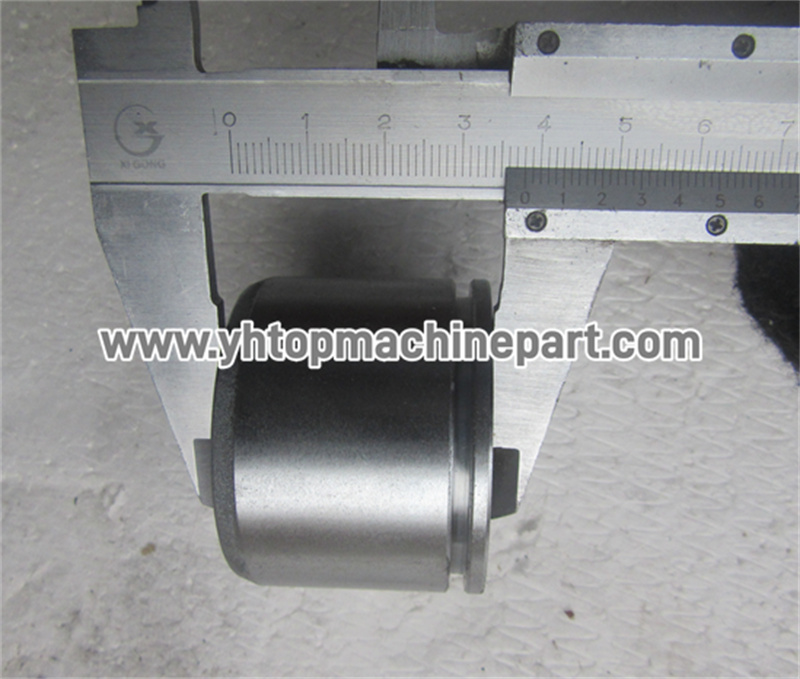

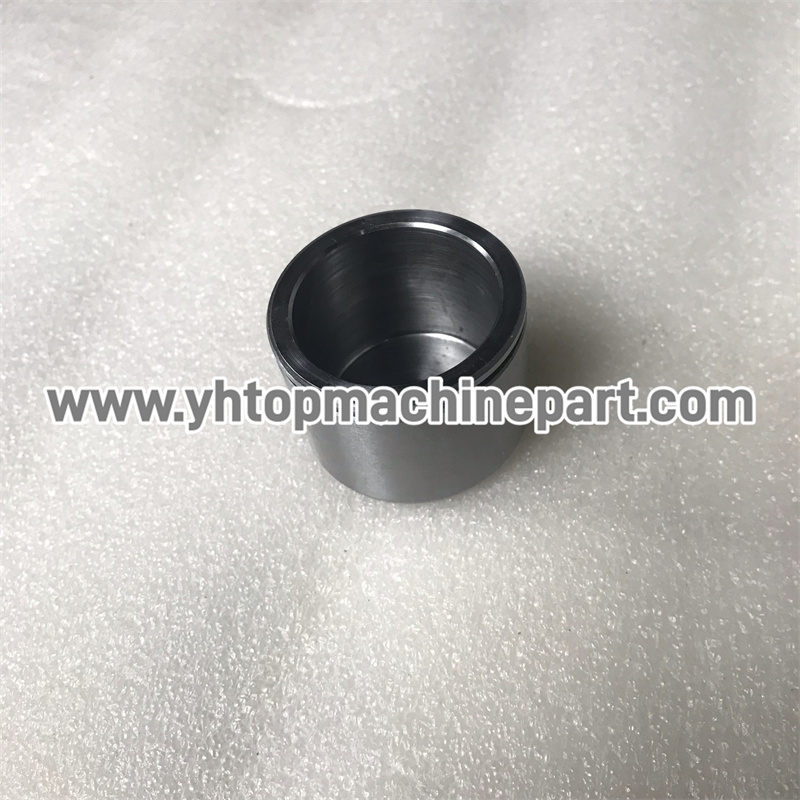

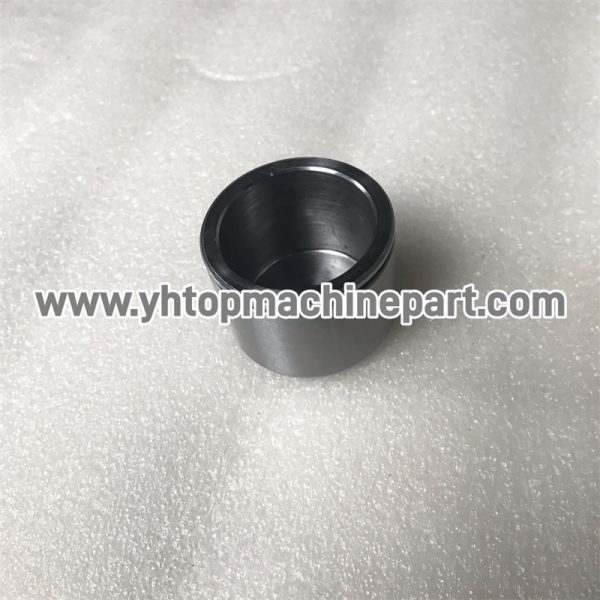

15 活塞JF.A.ZL15.07 CYLINDER PISTON 4120001827008
16 夹钳体JF.A.ZL15.01 binder 4120001827002

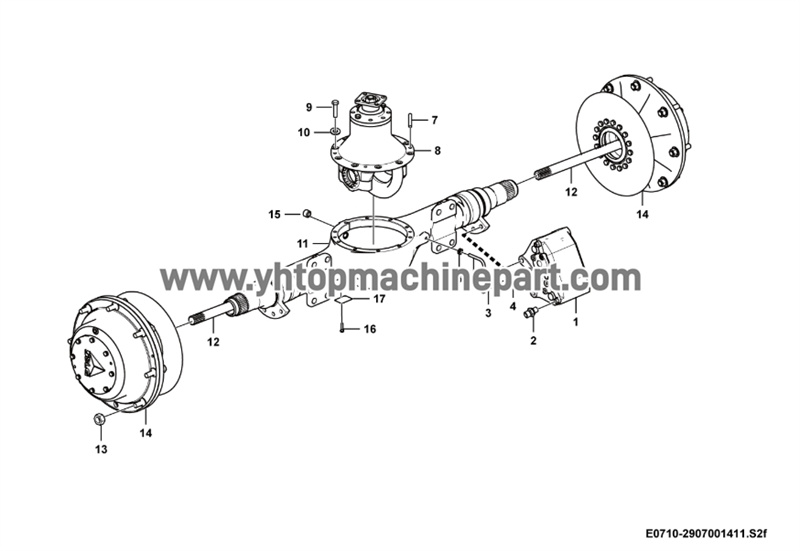

1 制动钳-LG918 DISC BRAKE 4120001827
2 放气嘴 NIPPLE 4120001740
3 螺栓GB5786-M16*1.5*55EpZn-10.9 BOLT 4011000842
4 垫圈 WASHER 29070009511
5 透气管 TUBE 29070000051
6 螺母GB6173-M10*1EpZn-05 NUT 4013000078
7 销GB119.2-10u8*30 PIN 4016000124
8 前主传动 FINAL DRIVE 29070014121
9 螺栓GB5786-M12*1.25*35EpZn-10.9 BOLT 4011000124
10 垫圈GB93-12-65Mn SPRING WASHER 4015000026
11 前桥壳总成 Front axle casing 29070014132
12 半轴 SHAFT HALF 29070014141
13 轮辋螺母 NUT 3050900003
14 轮边减速器 HUB REDUCTION 29070014151
15 磁性螺塞 PLUG 29070012481
16 铆钉GB827-3*5-BL2 RIVET 4019000012
17 前桥标牌 NAME PLATE 29070014161

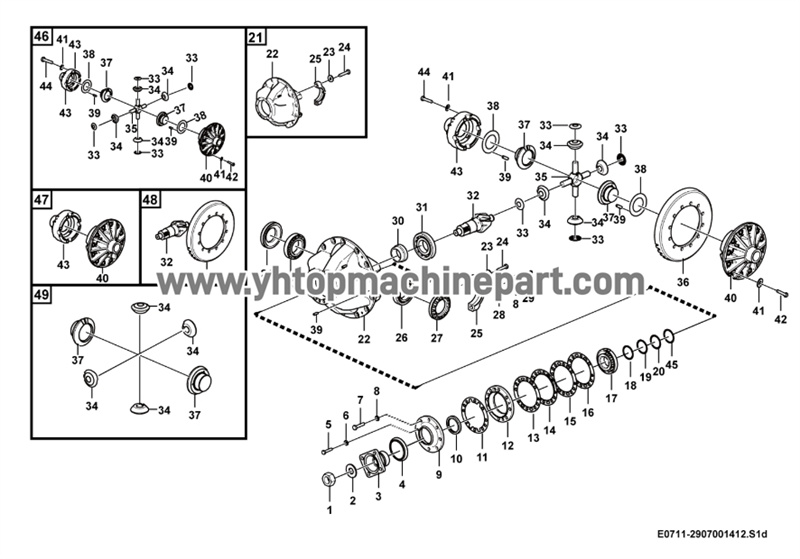

1 螺母GB6171-M24*2EpZn-8 NUT 4013000042 GB6171-M24*2EpZn-8
2 垫圈 Washer 29070010522
3 输入法兰 CONNECTION FLANGE 29070010051
4 防尘罩 DUST COVER 29070014251
5 螺栓GB5782-M12*50EpZn-8.8 BOLT 4011000064 GB5782-M12*50EpZn-8.8
6 垫圈GB93-12-65Mn SPRING WASHER 4015000026 GB93-12-65Mn
7 螺栓GB5782-M10*50EpZn-8.8 BOLT 4011000048 GB5782-M10*50EpZn-8.8
8 垫圈GB93-10-65Mn SPRING WASHER 4015000025 GB93-10-65Mn
9 密封盖 SEALING COVER 29070014181
10 密封圈GB13871.1-FB06008508-F SEALING RING 4030000854
11 密封垫片 GASKET 29070014401
12 轴承套 BEARING BUSHING 29070014201
13 调整垫片 SHIM 29070014361
14 调整垫片 SHIM 29070014371
15 调整垫片 SHIM 29070014381
16 调整垫片 SHIM 29070014391
17 滚动轴承GB297-31309 ROLLER BEARING 4021000132
18 调整垫片 SHIM 29070010221
-29070010241 Y 000002 ￥5.20
19 调整垫片 SHIM 29070010231
-29070010241 Y 000002 ￥5.20
20 调整垫片 SHIM 29070010241
21 托架总成 CENTER HOUSING 29070014231
22 托架 CENTER HOUSING 29070014431
23 垫圈 WASHER 29070009511
24 螺栓GB5782-M16*70EpZn-8.8 SCREW 4011000231 GB5782-M16*70EpZn-8.8
25 轴承座 BEARING SEAT 29070014441
26 滚动轴承GB297-32210 ROLLER BEARING 4021000240 7200000139
27 调整螺母 NUT 29070014301
28 锁紧片 LOCK WASHER 3050900024 ZL30F.5.1-18
29 螺栓GB5786-M10*1*20EpZn-8.8 BOLT 4011000597 GB5786-M10*1*20-Ep.Zn-8.8
30 轴套 SLEEVE 29070014191
31 滚动轴承GB297-32310 ROLLER BEARING 4021000239
32 主动螺旋伞齿轮（左） CROWN WHEEL 29070014211
33 锥齿轮垫片 THRUST WASHER 29070014241
34 锥齿轮 DIFFERENTIAL PINION 29070010161
35 十字轴 SPIDER 29070010171
36 从动螺旋伞齿轮（右） CROWN WHEEL 29070014221
37 半轴齿轮 DIFFERENTIAL SIDE GEAR 29070014271
38 半轴齿轮垫片 SHIM 29070014261
39 固定销 PIN 29070010211
40 差速器左壳 DIFFERENTIAL HOUSING 29070014281
41 垫圈 WASHER 29070015981
42 螺栓GB5786-M12*1.25*25EpZn-8.8 SCREW 4011000967
43 差速器右壳 DIFFERENTIAL HOUSING 29070014311
44 螺栓GB5785-M12*1.25*50EpZn-10.9 BOLT 4011000699
45 调整垫片 SHIM 29070010251
-29070010241 Y 000003 ￥5.20
46 差速器总成 DIFFERENTIAL SPIDER 29070019561
47 A513差速器左右壳 DIFFERENTIAL HOUSING 21909005161
48 A513前主从动伞齿轮 CROWN WHEEL 21909005141
49 锥齿半齿总成 GEAR KIT 21909006481

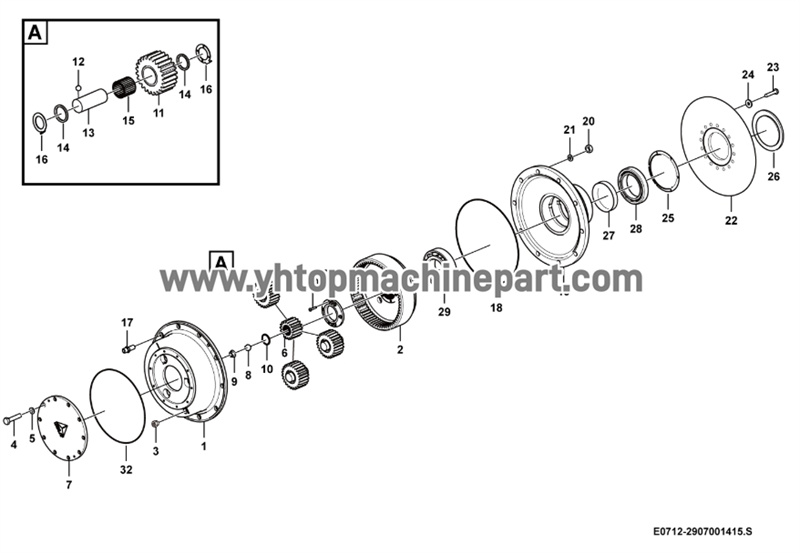

1 行星轮架 PLANET CARRIER 29070014451
2 内齿圈 GEAR RING 29070014461
3 磁性螺塞 PLUG 29070012481
4 螺栓GB5783-M10*25EpZn-8.8 BOLT 4011000082 GB5783-M10*25EpZn-8.8
5 垫圈GB93-10-65Mn SPRING WASHER 4015000025 GB93-10-65Mn
6 太阳轮 SUN GEAR 29070014471
7 端盖 END PLATE 29070014481
8 钢球GB308-17.462-GCr15 BALL 4090000006 GB308-17.462-GCr15
9 定位块 BLOCK 29070009161
10 挡圈GB894.1-34-65Mn RETAINING RING 4015000325
11 行星齿轮 PLANET GEAR 29070014491
12 钢球GB308-8-GCr15 BALL 4090000007 GB308-8-GCr15
13 行星齿轮轴 PLANET GEAR SHAFT 29070014501
14 挡环 RETAINING RING 29070014511
15 滚针GB309-3*29.8-GCr15 NEEDLE ROLLER 4090000002 GB309-3*29.8-GCr15
16 垫片 SHIM 29070014521
17 轮辋螺栓 STUD 29070010441
18 O形圈 O-RING 3050900045 ZL30F.5.3-11
19 轮毂 FRONT WHEEL HUB 29070010461
20 螺母GB6171-M18*1.5EpZn-8 NUT 4013000136 GB6171-M18*1.5EpZn-8
21 垫圈GB93-18-65Mn SPRING WASHER 4015000029 GB93-18-65Mn
22 制动盘 DISC BRAKE 29070014531
23 螺栓GB5786-M12*1.25*40EpZn-10.9 BOLT 4011000568 GB5786-M12*1.25*40EpZn-10.9
24 垫圈 WASHER 29070010131
25 密封圈GB9877.1-FB110*140*12D SEALING RING 4030000559
26 防尘罩 DUST COVER 29070014541
27 轴承隔套 SPACER SLEEVE 29070010491
28 滚动轴承GB297-32017 ROLLER BEARING 4021000135
29 滚动轴承GB297-32216 ROLLER BEARING 4021000036 GB297-32216
30 螺钉GB70-M8*1*20-8.8 SCREW 4014000118 GB70-M8*1*20-8.8
31 圆螺母 ROUND NUT 29070010511
32 O形圈GB3452.1-185*3.55G O-RING 4030000266 GB3452.1-185*3.55G

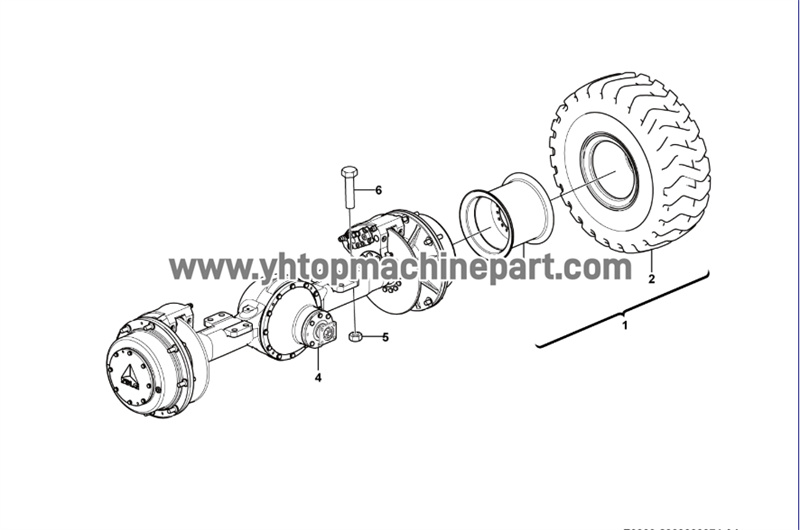

1 车轮总成 Wheel assembly 29070010771
2 轮胎GB2980-16/70-20 TIRE 4110000016
(4110000016Q) GB1190-16/70-20 N 000002
3 轮辋LY13-20.916.0A RIM 4190000119
4 A513后驱动桥总成 Rear axle 29090009163
5 螺母GB889.2-M20*1.5EpZn-8 LOCK NUT 4013000160
6 螺栓GB5785-M20*1.5*185EpZn-8.8 BOLT 4011000848
