Description

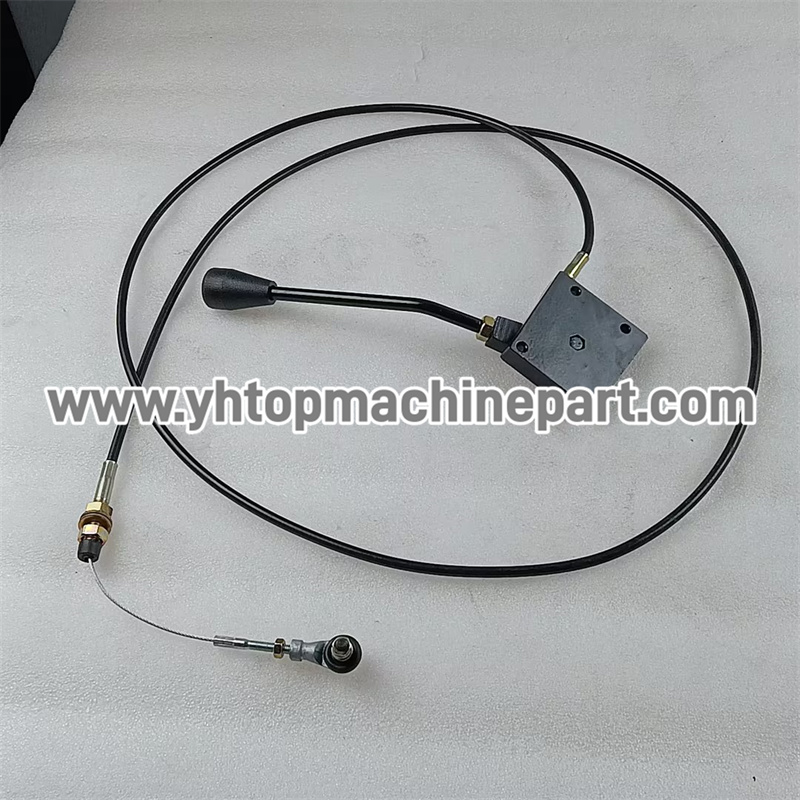

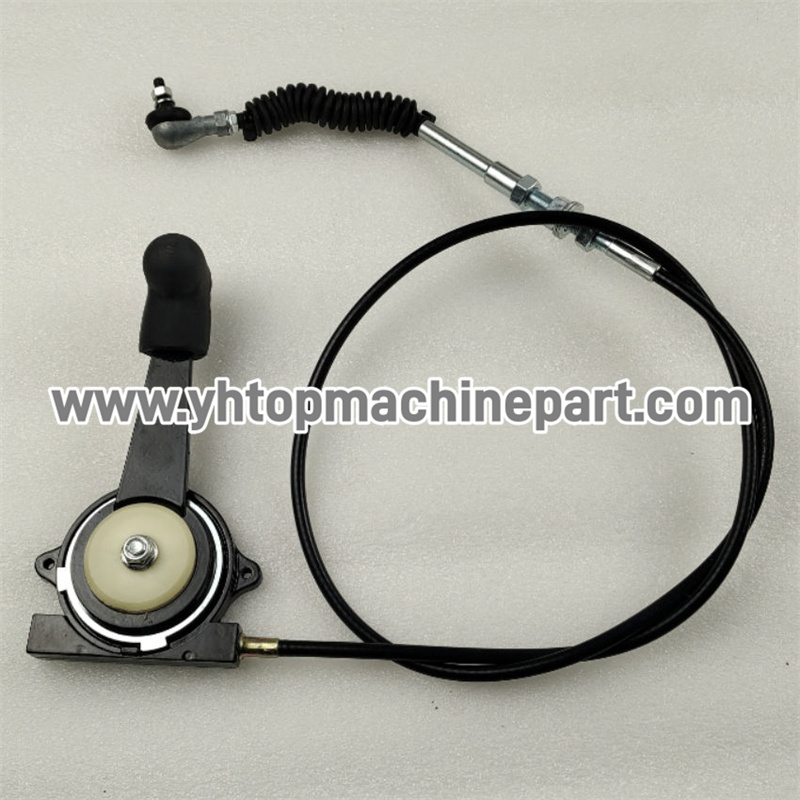

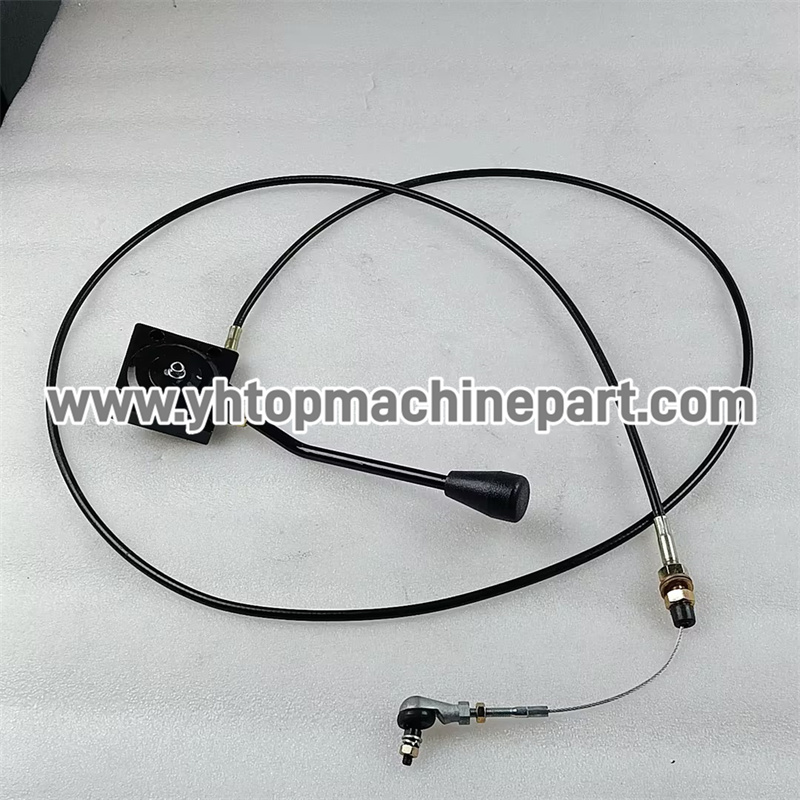

4110002568 Control cable Assembly SDLG E635F Excavator part

序号 名称 description 号码
1 左箱总成 CONTROL HOUSING 4190003445
2 箱下壳体DK-LGXW1-2 CLOSURE 4190003445001
3 左箱上壳体DK-LGXW1-1 CLOSURE 4190003445002
4 左箱骨架总成DK-LG35.ZFSX.1 FRAME 4190003445003
5 左箱盖板DK-LG35.ZFSX-2 COVER PLATE 4190003445004
6 螺钉GB70.1-M8*20EpZn-8.8 SCREW 4014000211
7 垫圈GB97.1-4EpZn-300HV WASHER 4015000135
8 螺钉GB818-M4*30EpZn-4.8 SCREW 4014000285
9 垫圈GB93-4-65Mn WASHER 4015000033
10 定位块DB03037E BLOCK 4190003445005
11 行程开关D4MC-5020 POSITION SWITCH 4130000748
12 垫圈GB97.1-8EpZn-300HV WASHER 4015000072
13 油门软轴 Control cable 4110002568
14 螺钉GB819.1-M5*10EpZn-4.8 Bolt 4014000138

1 锁紧螺母M33 LOCK NUT 29070021481
2 垫圈 WASHER 29070000221 ZL50G.5.1-1
3 输入法兰 CONNECTION FLANGE 29070000231
4 密封圈GB13871.1-FB08010010-D SEALING RING 4030001002
5 密封圈GB13871.1-FB08010012-F SEALING RING 4030000789
6 螺栓GB5782-M14*55flZnyc-8.8-480 SCREW 4011001318
7 垫圈 WASHER 29090007961
8 密封盖 SEALING COVER 29070000251 ZL50G.5.1-3
9 滚动轴承GB297-31313 ROLLER BEARING 4021000030 GB297-31313
10 轴承座 BEARING SEAT 29070000271 ZL50G.5.1-8
11 滚动轴承GB297-31314 ROLLER BEARING 4021000032 GB297-31314
12 托架总成 Centre housing 29070023342
13 滚动轴承GB297-32216 ROLLER BEARING 4021000036 GB297-32216
14 调整螺母 NUT 29070000351 ZL50.5.1-13A
15 差速器总成 DIFFERENTIAL SPIDER 29070019611
16 锁紧片 LOCK WASHER 29070000401 ZL50.5.1-18A
17 螺栓GB5786-M10*1*20EpZn-8.8 BOLT 4011000597 GB5786-M10*1*20-Ep.Zn-8.8
18 垫圈GB93-10-65Mn SPRING WASHER 4015000025 GB93-10-65Mn
19 滚动轴承GB283-NUP2307 ROLLER BEARING 4021000027 GB283-NUP2307
20 挡圈GB894.1-35-65Mn RETAINING RING 4015000020 GB894.1-35-65Mn
21 螺栓 BOLT 29070009501
22 螺母GB6176-M16*1.5-10 NUT 4013000198
23 垫圈 WASHER 29070009511
24 主动螺旋伞齿轮（右） CROWN WHEEL 29090008841
25 隔套 SLEEVE 29070022561
26 调整垫片 SHIM 29070022481
27 调整垫片 Shim 29070026211
28 调整垫片 SHIM 29070022501
29 调整垫片 Shim 29070026221
30 调整垫片 SHIM 29070022521
31 调整垫片 SHIM 29070022531
32 调整垫片 SHIM 29070022541
33 调整垫片 Shim 29070026231
34 调整垫片 SHIM 29070000151 ZL50G.5.1-5
35 调整垫片 SHIM 29070000161 ZL50G.5.1-5
36 调整垫片 SHIM 29070000171 ZL50G.5.1-5
37 密封垫 GASKET 29070000261 ZL50G.5.1-4
38 螺栓GB5782-M12*55flZnyc-8.8-480 SCREW 4011001281
39 垫圈 WASHER 29070015981
40 O形圈GB3452.1-53.0*5.30G O-RING 4030000035 GB3452.1-53*5.30G
41 挡圈 RETAINING RING 29070000241 ZL50G.5.1-2
42 从动螺旋伞齿轮（左） CROWN WHEEL 29090008511
43 油封压盖 COVER 29070000641 ZL50.5.1.1-2A
44 输入法兰 CONNECTION FLANGE 29070000631
45 锥齿轮垫片 THRUST WASHER 29070000331 ZL50.5.1-11A
46 锥齿轮 DIFFERENTIAL PINION 29070000341 ZL50.5.1-12A
47 差速器左壳 DIFFERENTIAL HOUSING 29070000431
-2050900079 ZL50.5.1-14A N 000001 ￥766
48 半轴齿轮 DIFFERENTIAL SIDE GEAR 29070013221
49 半轴齿轮垫片 SHIM 29070000381 ZL50.5.1-16A
50 螺栓 BOLT 29070009491
51 螺母GB6176-M16*1.5-10 NUT 4013000198
52 垫圈 WASHER 29070009511
53 十字轴 SPIDER 29070000411 ZL50.5.1-20A
54 差速器右壳 DIFFERENTIAL HOUSING 29070000361
-2050900079 ZL50.5.1-21A N 000001 ￥766
55 固定销 PIN 29070000461 ZL50.5.1-26
56 调整垫片 Shim 29070026241
57 调整垫片 Shim 29070026251
