4110002405012 129940-42310 v belt 4110002168027 129927-42001 water pump Thermostat 4110001600036 121850-49801 SDLG E665F E660F excavator part

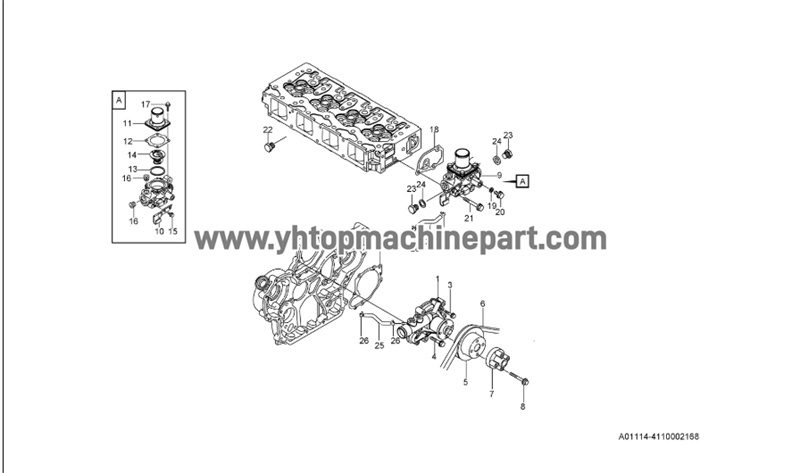

1 水泵129927-42001 Water pump 4110002168027
2 水泵垫片129900-42020 GASKET 4110000129165
3 螺栓M6X30 26106-060302 SCREW 4110000129166
4 螺栓M8X55 26106-080552 SCREW 4110000129125
5 风扇皮带轮129930-42400 PULLEY 4110002168028

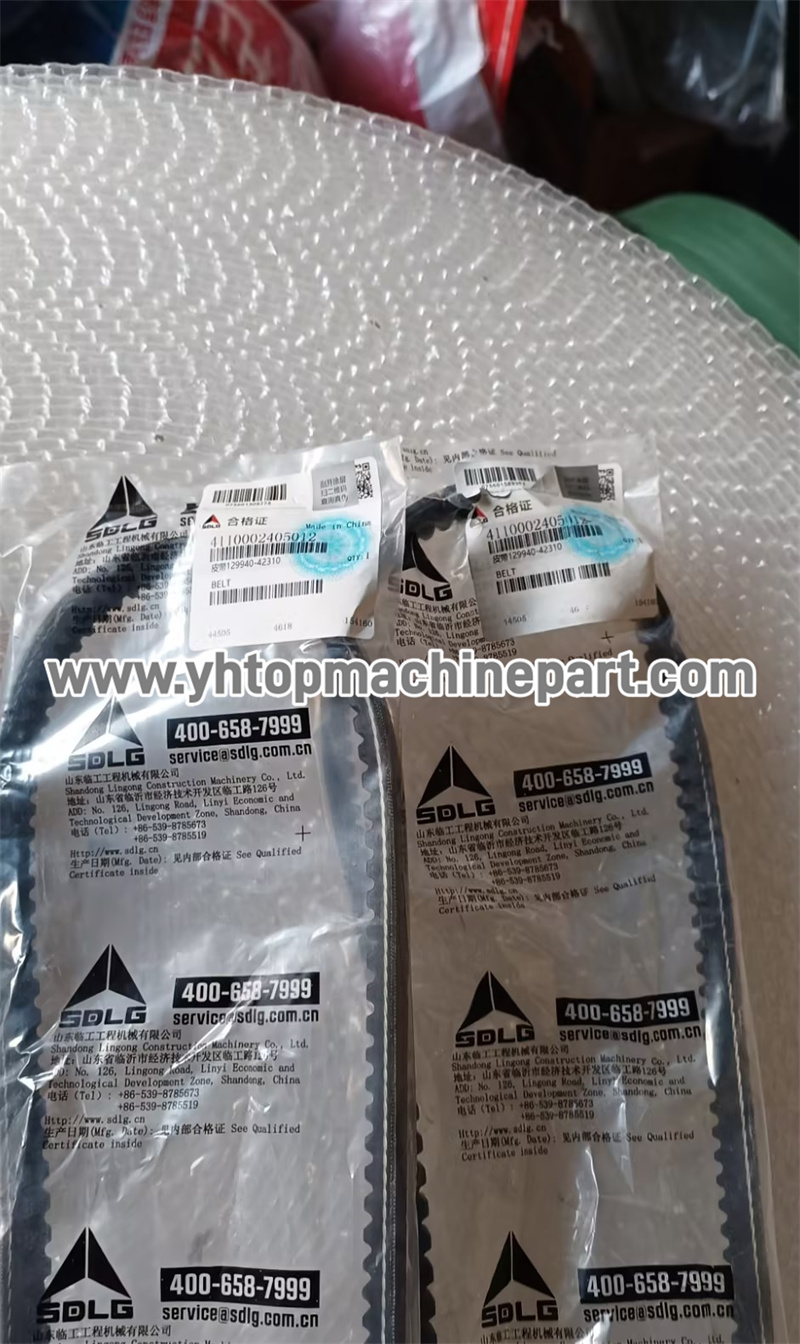

6 皮带129940-42310 V-BELT 4110002405012
7 调节垫片119117-44760 SPACER 4110000678009
8 螺栓M8X80 26106-080802 SCREW 4110000129102
9 箱体总成129938-49800 Thermostat housing 4110002168029
10 温度传感器129927-44900 Temperature sensor 4110002168030
11 盖129916-49530 THERMOSTAT RETAINER 4110000129171
12 衬垫121850-49540 GASKET 4110000129172
13 衬垫121850-49550 GASKET 4110000129173
14 节温器121850-49801 Thermostat 4110001600036
15 密封垫圈12 22190-120002 SEALING WASHER 4110000129218
16 销PT3/8 23875-030000 PLUG 4110000129176
17 螺栓M6X20 26106-060202 SCREW 4110000129178
18 衬垫129900-49870 GASKET 4110000129179
19 衬垫23414-080000 SEALING WASHER 4110000129180
20 螺栓M8X12 26106-080122 SCREW 4110000129052
21 螺栓M8X60 26106-080602 SCREW 4110000129086
22 销171056-49120 PLUG 4110000129163
23 销M16 121450-42450 PLUG 4110000129181
24 衬垫16 124465-44950 SEALING WASHER 4110000129182
25 水管129927-49610 Water pipe 4110002168031
26 管夹23080-012000 Clamp 4110002168032
27 水管129927-49620 Water pipe 4110002168033
28 管夹23080-012000 Clamp 4110002168032

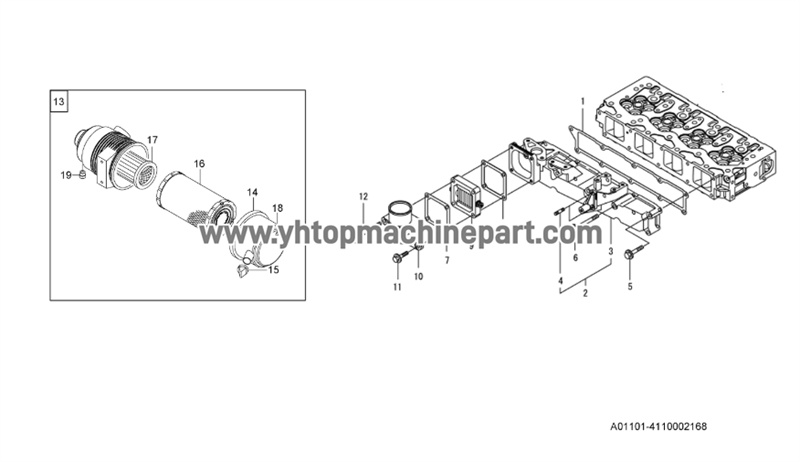

1 进气管垫片129907-12110 GASKET 4110000129100
2 进气歧管总成129927-12150 Inlet manifold 4110002168006
3 进气歧管129927-12100 Inlet manifold 4110002168007
4 双头螺栓M6*20 26216-060202 Stud 4110002168008
5 螺栓M8X45 26106-080452 SCREW 4110000129036
6 螺栓M8X80 26106-080802 SCREW 4110000129102
7 密封垫119129-77020 GASKET 4110000678046
8 衬垫121850-77021 GASKET 4110000129103
9 加热器119005-77051 PRE-HEATER 4110000678028
10 弯管接头119129-77520 Nipple 4110002168009
11 螺栓M8X40 26106-080402 SCREW 4110000129035
12 螺栓M8*90 26106-080902 Screw 4110002168010
13 空气滤清器129944-12500 AIR CLEANER 4110000322
14 盖总成129900-12530 FILTER CAP 4110000322003
15 底部管119808-12540 VALVE 4110000322004
16 空气滤清器主滤芯129062-12560 Air filter insert 4110002116013
17 空气滤清器安全滤芯119005-12571 Air filter insert 4110002116012
18 标识129612-12650 DECAL 4110000129106
19 指示器119140-12680 INDICATOR 4110000322005

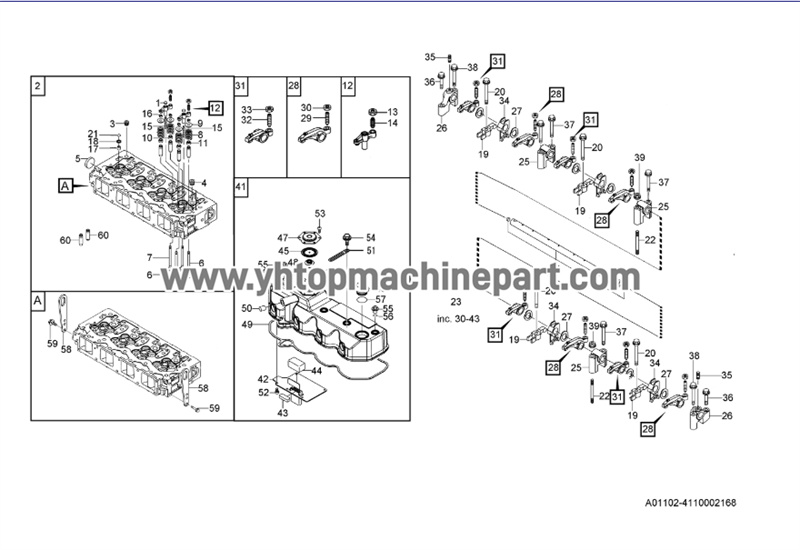

1 座123907-11550 SUPPORT 4110000129054
2 缸盖129927-11700 Cylinder head 4110002168003
3 销PT1/4 23876-020000 PLUG 4110000129056
4 销PT3/8 23876-030000 PLUG 4110000129012
5 销40 27241-400000 PLUG 4110000129057
6 进气门129907-11100 INLET VALVE 4110000129058
7 排气门129907-11110 EXHAUST VALVE 4110000129059
8 气门弹簧129907-11120 VALVE SPRING 4110000129060
9 固定器119620-11180 VALVE SUPPORT 4110000129061
10 排气门油封119803-11340 SEALING COLLAR 4110001600006
11 进气门油封124160-11340 SEALING RING 4110000129063
12 桥接器总成129907-11510 ROCKER ARM 4110000129064
13 螺母M8XP1.0 129150-11750 NUT 4110000129065
14 螺钉123907-11830 SCREW 4110000129066
15 导引器123907-11820 GUIDE 4110000129067
16 制动销总成27310-070001 VALVE SLEEVE 4110000129068
17 油嘴保护套119802-11870 PROTECTIVE SLEEVE 4110000129070
18 油嘴座119625-11880 SUPPORT 4110000129071
19 止动器129907-11910 RETAINER 4110000129072
20 凸缘螺栓129907-11950 SCREW 4110000129073
21 O形圈1A P12.0 24311-000120 O-RING 4110000129074
22 螺栓M8X80 119593-11301 SCREW 4110000129075
23 支撑金属管129907-11341 ROCKER ARM KIT 4110000129076
24 摇臂轴129907-11250 ROCKER ARM SHAFT 4110000129077
25 支座A 129907-11260 SUPPORT 4110000129078
26 支座B 129907-11270 SUPPORT 4110000129079
27 垫圈123907-11280 WASHER 4110000129080
28 摇臂总成129907-11650 ROCKER ARM KIT 4110000129081
29 螺钉129150-11230 SCREW 4110000129082
30 螺母M8XP1.0 129150-11750 NUT 4110000129065
31 摇臂总成129907-11660 ROCKER ARM KIT 4110000129083
32 螺钉129150-11230 SCREW 4110000129082
33 螺母M8XP1.0 129150-11750 NUT 4110000129065
34 底座129907-11920 RETAINER 4110000129084
35 柱头螺栓M8X22 26226-080222 STUD 4110000129085
36 螺栓M8X40 26106-080402 SCREW 4110000129035
37 螺栓M8X60 26106-080602 SCREW 4110000129086
38 螺栓M8X60 26106-080602 SCREW 4110000129086
39 螺母26306-080002 NUT 4110000129087
40 盖124160-01751 FILLER CAP 4110000129038
41 气门室盖129927-11320 Valve cover 4110002168004
42 隔板129907-03011 BAFFLE PLATE 4110000129089
43 挡板129907-03061 BAFFLE 4110000129090
44 挡板129907-03070 BAFFLE 4110000129091
45 隔膜123907-03100 DIAPHRAGM 4110000129092
46 中心板123907-03110 PLATE 4110000129093
47 板123907-03120 PLATE 4110000129094
48 弹簧123907-03140 SPRING 4110000129095
49 密封垫129933-11310 GASKET 4110000678049
50 销119640-61400 PLUG 4110000129097
51 夹175339-79700 Clamp 4110002168005
52 螺钉5X10 22857-500100 SCREW 4110000129098
53 螺钉5X10 22857-500100 SCREW 4110000129098
54 螺栓M6X12 26106-060122 SCREW 4110000129177
55 按钮124160-11360 SCREW 4110000129099
56 O形圈1A P12.0 24311-000120 O-RING 4110000129074
57 O形圈1AP-32.0 24311-000320 O-RING 4110000129039
58 升降机构129907-07900 LIFTING BRACKET 4110000129053
59 螺栓M8X16 26106-080162 SCREW 4110000129033
60 气门导管129907-11800 VALVE GUIDE 4110000129069
