Description

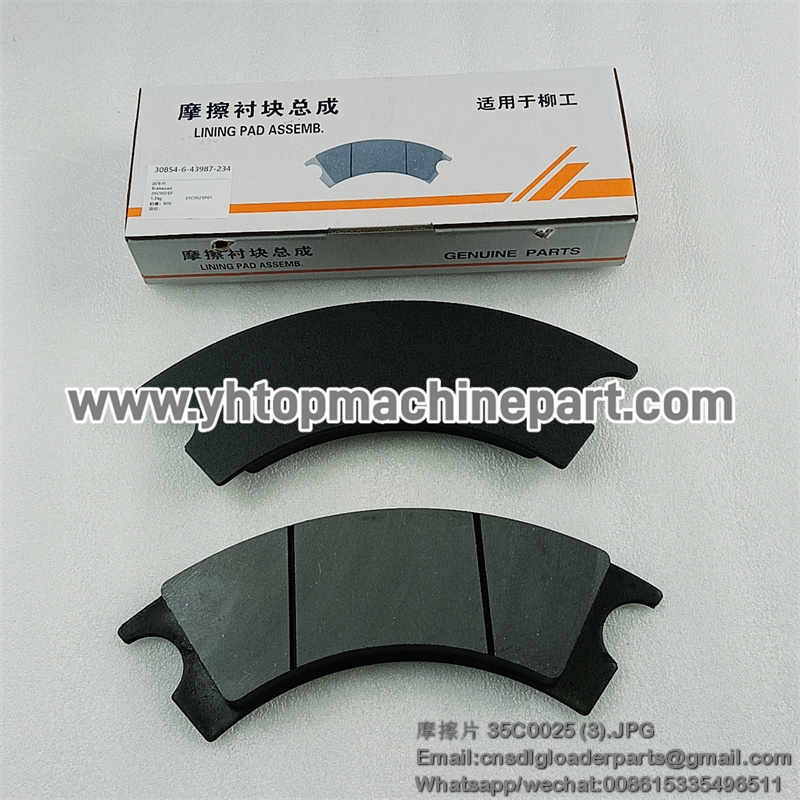

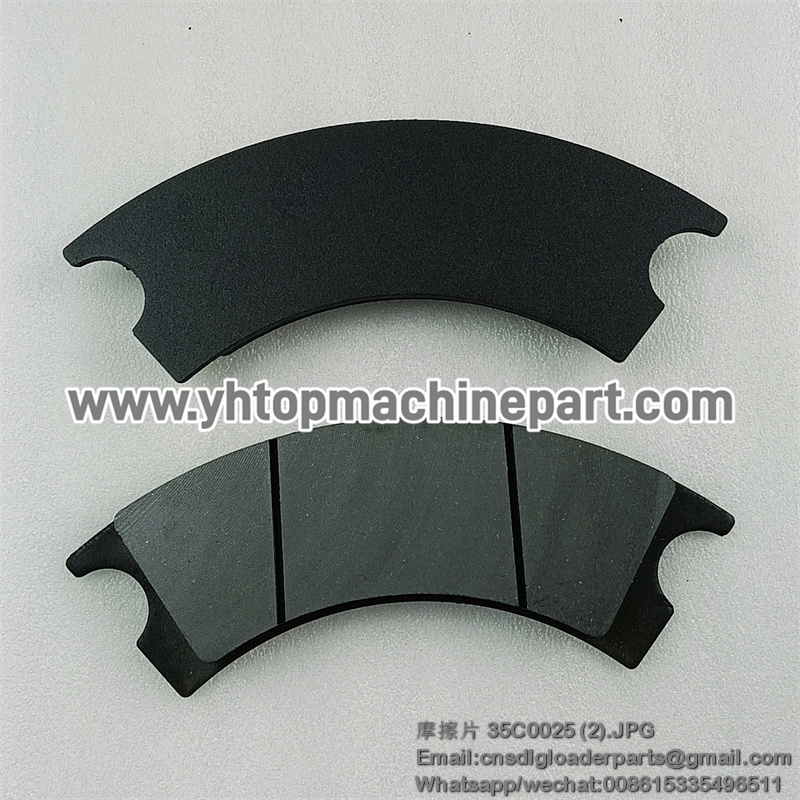

35C0025 Brake Pad for liugong Clg856 ZL50C ZL40B ZL30E

Serial No Part Number Part Name Part Model
1 LG50EX.09.02 Parking brake air chamber QZ50-3507001
2 LG50EX.09.04 Parking brake air chamber fixing bracket LG50F.09007-008A
3 GB5783 Bolt M16
4 GB/T97.1 Washer 10
5 GB/T 93 Washer 10
6 90C-C/8I-L=1800 Hose from manual control brake valve to parking brake air chamber
7 LG856.09.02 Manual control brake valve QZ50
8 90C-C/8I-L=1400 Hose from manual control brake valve to cutoff cylinder
9 LG856.08-001 Four-circuit protecting valve outlet connector
10 JB1002 Washer 16
11 LG853.08-013 Connector
12 JB1002 Washer 22
13 LG856.09.01 Parking brake air tank assembly
14 C/8I-L=3400 Hose from protecting valve to parking brake air tank
15 C/8I-L=3200 Hose from parking brake air tank to manual control valve
16 LG50EX.09.03 XZ cutoff cylinder
17 LG50EX.09-001 Hand control brake valve air outlet connector LG50F.09002A
18 LG50EX.09-003 Cutoff cylinder air inlet connector LG50F.09003A
19 LG50EX.09-002 Manual control brake valve air inlet connector LG50F.09001A
20 LG856.09-001 Brake air chamber inlet connector

Serial No Part Number Part Name Part Model
1 LG853.08.04 Oil inlet pipe
2 LG853.08.03 Front booster pump oil outlet pipe
3 LG853.08-004 Connecting bolt
4 LG853.08-005 Washer
5 LG856.08.02 Booster pump LG-ZL50C
6 90C-C/8I-L=2300 Hose from brake valve to front booster pump
7 LG856.08.07 Double chamber air brake valve HP3514B
8 JB1002 Copper washer 22
9 LG853.08-007 Pressure connector seat
10 C/8I-L=3600 Hose from brake valve to right air tank
11 C/8I-L=3300 Hose from brake valve to left air tank
12 90C-C/8I-L=1400 Hose from brake valve to rear booster pump
13 LG853.08.06 Rear axle oil pipe 508003-003
14 LG853.08.11 Brake hose
15 GB/T 5783 Bolt M16
16 GB/T93 Washer 16
17 GB/T 97.1 Washer 16
18 LG853.08-015 Air compressor outlet pipe bracket 508009C-Ⅱ
19 LG853.08-003 Pipe clip φ12
20 GB/T 5783 Bolt M12
21 GB/T 93 Washer 12
22 GB/T 97.1 Washer 12
23 GB/T 6170 Nut M12
24 LG853.08.07 Compressor air outlet pipe
25 LG856.08.01 Air tank assembly
26 LG856.08.03 Recoil air tank HP-3511CB-18
27 LG853.08.12 Air pressure gauge pipe 1300
28 LG856.08-001 Four-circuit protecting valve outlet connector
29 LG856.08.04 Four-circuit protecting valve HP3518
30 GB/T 5783 Bolt M8
31 GB/T 93 Washer 8
32 GB/T 97.1 Washer 8
33 GB/T 5783 Bolt M10
34 GB/T 93 Washer 10
35 GB/T 97.1 Washer 10
36 LG853.01-005 Pipe clip
37 GB/T 5783 Bolt M6
38 GB/T 93 Washer 6
39 LG853.08.05 Front axle pipe
40 90C-C/8I-L=2400 Hose from protecting valve to right air tank
41 90C-C/8I-L=2700 Hose from protecting valve to left air tank
42 90C-90 Hose from dryer to protecting valve
43 LG856.08-003 Dryer articulating bolt
44 20791-18-05/20711-18-05XJS8XL1600 Hose from air compressor to dryer
45 LG856.08.05 Dryer HP3511
46 LG856.08.06 Dryer bracket
47 90C-C/8I-L=2000 From dryer to recoil air tank
48 LG856.08-004 Stopper
49 JB1002 Copper pad 16
50 LG856.08-005 Recoil air tank fixing board

Serial No Part Number Part Name Part Model
1 LG856.10Ⅱ.01 Front frame
2 GB/T5783 Bolt M10
3 GB/T93 Washer 10
4 LG855.10-001 Cover board LG855.10001A
5 LG855.10.04 Tilt cylinder rear pin weldment LG50F.10002-003A
6 JB/T7940.1-1995 Oil cup M10 GB/T1152
7 GB/T5783 Bolt M20
8 GB/T93 Washer 20
9 GB/T97.1 Washer 20
10 LG855.10.05 Lift arm upper pin weldment LG50F.10005-005A
11 LG855.10.06 Lift cylinder rear pin weldment LG50F.10007-008A
12 LG855.10.07 Rear steering pin weldment LG50F.10011-012A
13 LG855.10-002 Steering cylinder rear tray LG50F.10013A
14 GB/T5783 Bolt M16
15 GB/T93 Washer 16
16 LG855.10.08 Oil tank bracket LG50E.10001-002A
17 LG856.10Ⅰ.02 Rear frame
18 LG856.10.02 Rear frame
19 LG855.10-003 Oil filter bracket 510009C
20 LG855.10.03 Oscillating suspension LG50F.10300B
21 LG853.10-018 Block 410002B
22 LG855.10-004 Copper pad LG50F.10035A
23 LG855.10.09 Oscillating suspension pin LG50F.10033-034A
24 LG855.10.10 Oscillating suspension oil filling pipe 1 LG50F.10042-042A
25 GB/T5782 Bolt M12
26 GB/T93 Washer 12
27 GB/T6170 Nut M12
28 GB/T297-1994 Bearing 32215 GB297-84 7515E
29 LG853.10-008 End cover 510014C
30 LG853.10-007 Articulating pin 75X230
31 LG853.10-006 Press plate 510011C
32 GB/T13871-1992 FB-type seal 75
33 LG853.10-005 Upper bearing cover
34 LG853.10-004 Lower bearing cover
35 LG853.10-003 Adjusting spacer 510018C
36 LG853.10-001 Upper shaft sleeve 75X85X66
37 LG853.10-002 Lower shaft sleeve 106X75X52
38 GB/T13871-1992 FB-type seal 85
39 GB/T5783 Bolt M12
40 LG855.10.11 Front steering pin weldment LG50F.10015-016A
41 LG855.10.12 Right front steering pin oil filling pipe LG50F.10018-018A
42 LG855.10.13 Left front steering pin filling pipe
43 LG855.10-006 Adjusting washer
44 JB/T7940.2-1995 Oil cup M10 GB/T1153
45 GB/T5783 Bolt M16
46 LG855.10.14 Oscillating suspension oil filling pipe 2 LG50F.10041-041A
47 LG855.10-007 Oscillating suspension pin sleeve LG50F.10032A
48 LG853.01-005 Wiring clip LG50D.15008B
49 GB/T5783 Bolt M8
50 GB/T93 Washer 8
51 GB/T97.1 Washer 8
52 LG853.10-022 Lower end cover

Serial No Part Number Part Name Part Model
1 LG856.11.01 Bucket
2 LG853.11.02 Pull rod
3 LG855.11.03 Lift arm LG855.11300A
4 LG853.11.04 Tilt arm
5 LG853.11-001 Lift arm upper shaft sleeve 衬套（动臂缸）CDM855
6 JB/T7940.1-1995 Oil cup M10 GB/T1152
7 LG855.11.05 Lift cylinder upper pin weldment LG50F.11017-018
8 GB/T5783 Bolt M24
9 GB/T93 Washer 24
10 GB/T97.1 Washer 24
11 GB9877.1-88(B type) Oil seal 120
12 LG853.11-002 Tilt arm middle shaft sleeve 120X140X106
13 LG853.11.06 Tilt arm middle pin weldment
14 LG853.11-004 Pull rod sleeve 80X100X120
15 GB/T93 Washer 20
16 GB/T97.1 Washer 20
17 GB/T5783 Bolt M20
18 LG853.11-005 O-ring
19 LG855.11.06 Bucket lower pin weldment LG50F.11001-002
20 LG853.11-003 Lift arm lower shaft sleeve 70X90X120
21 LG853.11.07 Bucket upper pin weldment
22 LG856.11.01-002 Tooth sleeve
23 LG856.11.01-004 Pin
24 LG856.11.01-005 Sprag
