Description

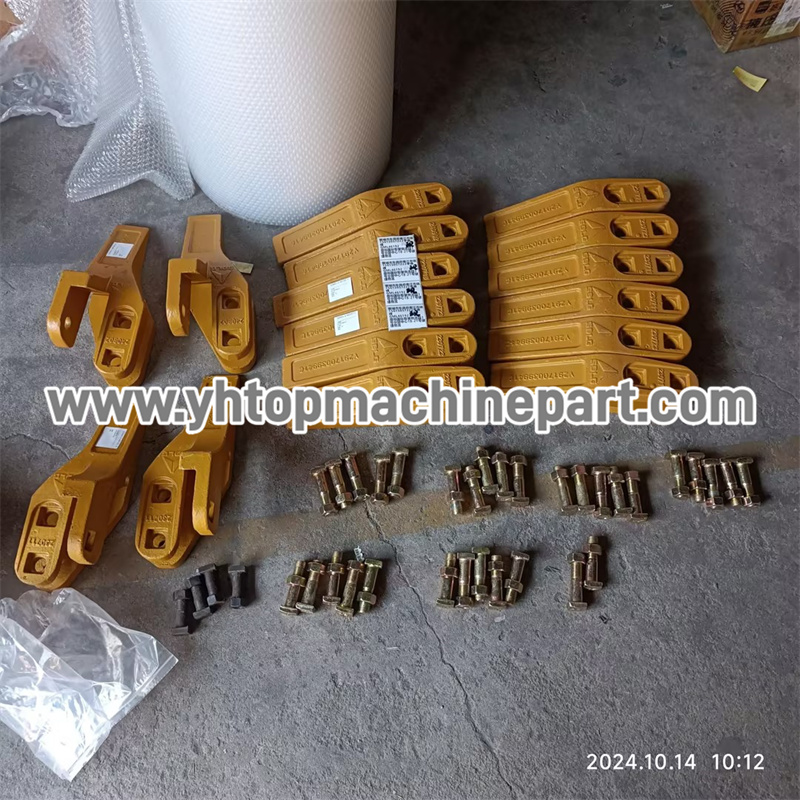

29170039941 29170039951 29170039961 bucket teeth 29170019711 bolt 4013000020 nut L956F L955F Loader Part

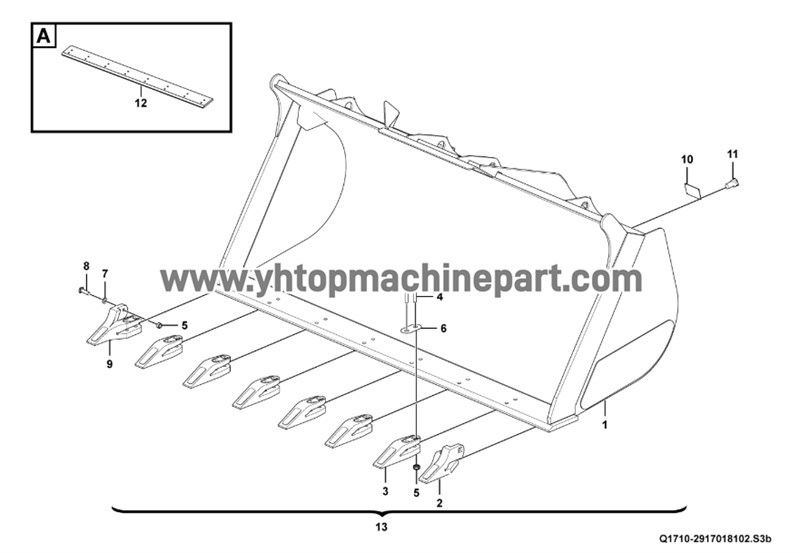

铲斗3.0*3016 Bucket 29170181033
左边齿 BUCKET TOOTH 29170039951
斗齿 BUCKET TOOTH 29170039941
螺栓 BOLT 29170019711
螺母GB6170-M20EpZn-8 NUT 4013000020
斗齿调整垫 SHIM 29170020531
垫圈GB97.1-20EpZn-300HV WASHER 4015000176
螺栓 BOLT 29170019701
右边齿 BUCKET TOOTH 29170039961
铲斗铭牌 Name plate 29170105791
铆钉GB827-3*5-BL2 RIVET 4019000012
主刀板-锰钢 CUTTING EDGE 29170039971
铲斗总成BG300 Bucket 29170181023

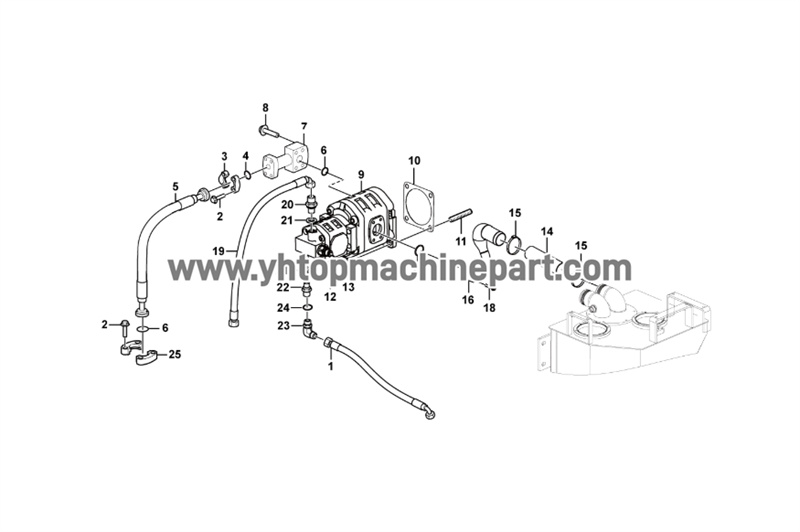

1 软管LGB128-004070 HOSE ASSEMBLY 4041000730
2 螺栓GB16674.1-M10*30flZnyc-8.8-480 SCREW 4011001300
3 分体法兰LGB117-310490 FLANGE HALF 4041000043
4 O形圈GB3452.1-32.5*3.55G O-RING 4030000026
5 转向泵出油胶管 Hose assembly 29190015131
6 O形圈GB3452.1-37.5*3.55G O-RING 4030000029
-4041000878 GB3452.1-37.5*3.55G Y 000002
7 泵出油法兰 Flange 29190016671
8 螺栓GB16674.1-M10*55flZnyc-8.8-480 SCREW 4011001298
9 双联泵JHP2100/Gj0010A-XF GEAR PUMP 4120002266
10 泵用密封垫 Gasket 29110000043
11 螺柱GB898-M12*35flZnyc-10.9-480 Stud 4012000100
12 螺母GB6170-M12flZnyc-10-480 Nut 4013000397
13 垫圈GB97.1-12flZnyc-300HV-480 WASHER 4015000428
14 转向泵吸油胶管 Hose 29190014751
15 喉箍JB8870-d90 CLAMP 4017000013
16 转向泵吸油钢管 Pipe 29190014742
17 O形圈GB3452.1-50.0*3.55G O-RING 4030000482
18 螺栓GB16674.1-M12*60flZnyc-8.8-480 Screw 4011001530
19 软管LGB165-005050 HOSE ASSEMBLY 4041000865
20 直通接头体 NIPPLE 29190007921
21 垫圈 WASHER 29120014931
22 接头 NIPPLE 29120007651
23 组合接头LGB143-01608 NIPPLE 4041001023
24 O形圈GB3452.1-8.00*1.80G O-RING 4030000240
25 分体法兰LGB117-312551 FLANGE HALF 4041000027

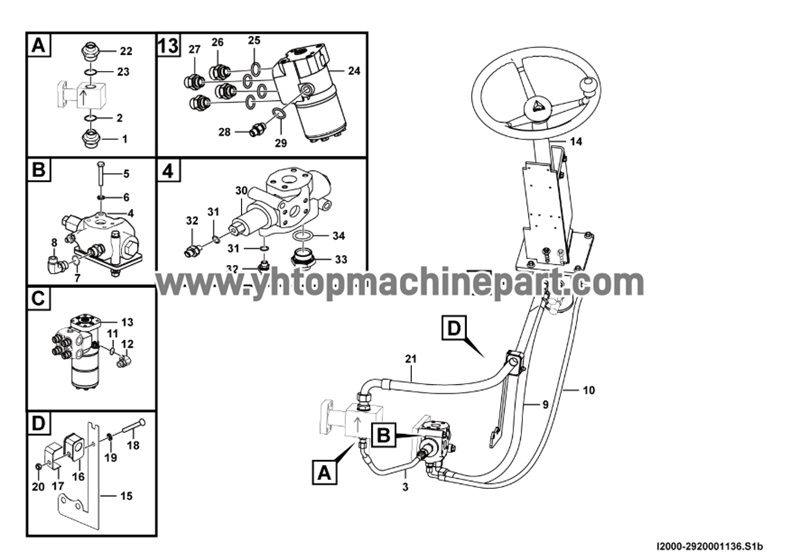

1 直接头LGB120-01616 NIPPLE 4041000709
2 O形圈LGB168-11324 O-RING 4041000780
3 优先阀回油胶管 Hose assembly 29200011431
4 优先阀VLE-150S部装总成 Priority valve 29200011391
5 螺栓GB5782-M10*90flZnyc-8.8-480 SCREW 4011001354
6 垫圈GB97.1-10flZnyc-300HV-480 WASHER 4015000433
7 O形圈GB3452.1-15.0*1.80G O-RING 4030000501
8 组合接头LGB143-02616 NIPPLE 4041001006
9 软管LGB127-010085 Hose assembly 4041002585
10 软管LGB128-003100 HOSE ASSEMBLY 4041002519
11 O形圈GB3452.1-6.00*1.80G O-RING 4030000530
12 组合接头LGB143-01406 NIPPLE 4041001047
13 转向器Xcel80-800部装 Diverter 29200011381
14 转向柱部装总成 Steering column 29200012111
15 支架 Bracket 29200011401
16 橡胶管夹 Clamp 29200011411
17 U型固定板 Plate 29200011421
18 螺栓GB5782-M8*60flZnyc-8.8-480 Bolt 4011001512
19 垫圈GB97.1-8flZnyc-300HV-480 WASHER 4015000430
20 螺母GB6170-M8flZnyc-8-480 NUT 4013000373
21 转向器回油胶管 Hose assembly 29200011441
22 直接头LGB120-03028 NIPPLE 4041000188
23 O形圈LGB168-12331 O-RING 4041000779
24 转向器Xcel80-800 DIVERTER VALVE 4120006531
25 O形圈LGB168-11724 O-RING 4041000783
26 直接头LGB120-02620 NIPPLE 4041000564
27 直接头LGB120-02220 NIPPLE 4041000132
28 直接头LGB120-01412 NIPPLE 4041000131
29 O形圈LGB168-10924 O-RING 4041000784
30 优先阀VLE-150S PRIORITY VALVE 4120002116
31 O形圈GB3452.1-12.5*2.65G O-RING 4030000285
32 直接头LGB155-01214 NIPPLE 4041000084
33 直接头LGB155-23326 NIPPLE 4041000088
34 O形圈GB3452.1-32.5*2.65G O-RING 4030000276

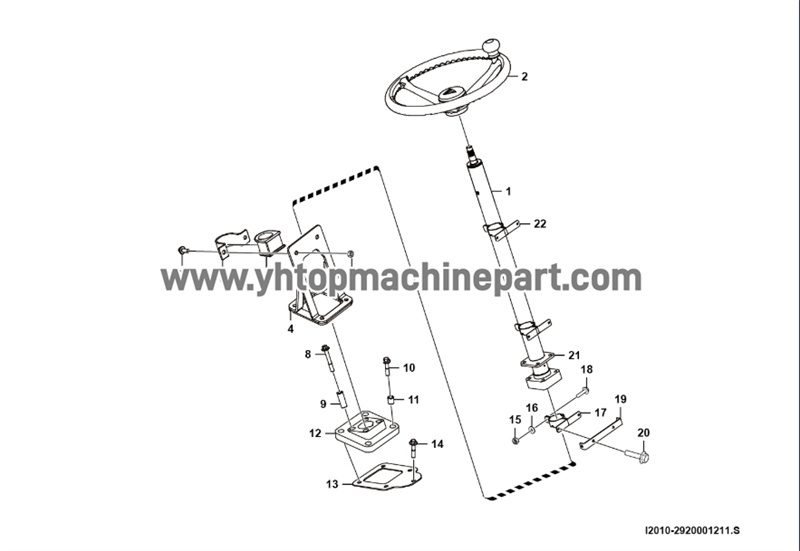

1 转向柱LG20-ZXZ-19 STEERING COLUMN 4120003892
2 方向盘FXP-953 STEERING WHEEL 4120003680
3 螺母GB6170-M10EpZn-8 NUT 4013000007
4 固定支架 Bracket 29200012091
5 橡胶套 RUBBER SLEEVE 29200009081
6 管夹 CLAMP 29200009091
7 螺栓GB16674-M10*35EpZn-8.8 BOLT 4011000164
8 螺栓GB16674-M10*85EpZn-8.8 BOLT 4011000136
9 钢管 PIPE 29200009311
10 螺栓GB16674-M10*50EpZn-8.8 BOLT 4011000309
11 钢管 PIPE 29200009321
12 橡胶块 RUBBER MAT 29200009361
13 盖板 COVER PLATE 29200009561
14 螺栓GB16674-M10*20EpZn-8.8 BOLT 4011000447
15 螺母GB6170-M6EpZn-8 NUT 4013000028
16 垫圈GB97.1-6EpZn-300HV WASHER 4015000207
17 管夹 CLAMP 29200009431
18 螺钉GB818-M6*12EpZn-4.8 SCREW 4011000194
19 管夹 CLAMP 29200009421
20 螺钉GB818-M5*12EpZn-4.8 SCREW 4014000048
21 压板 PLATE 29200009301
22 管夹 CLAMP 29200009411
