Description

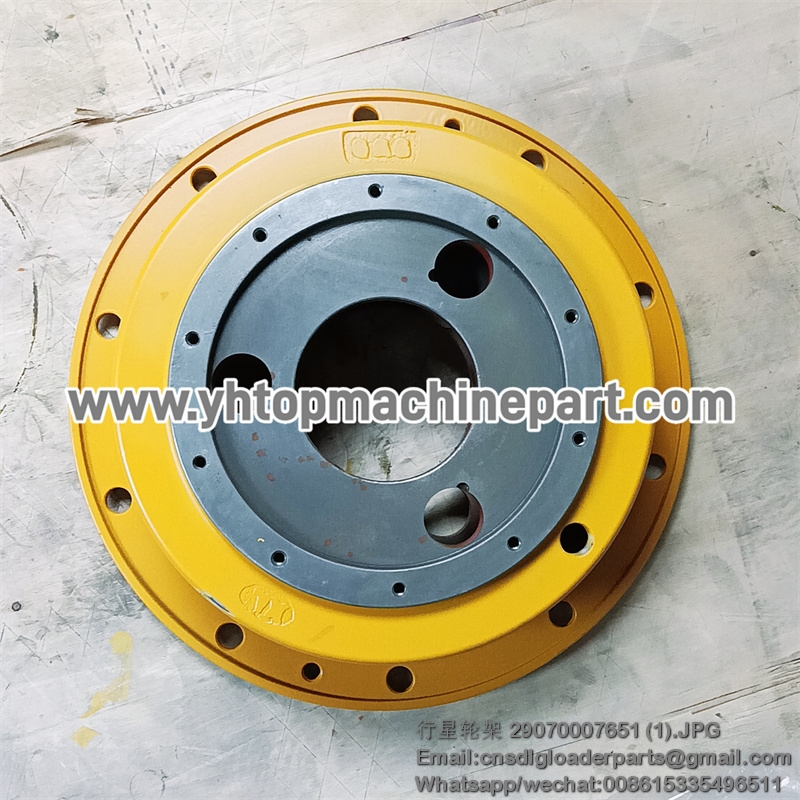

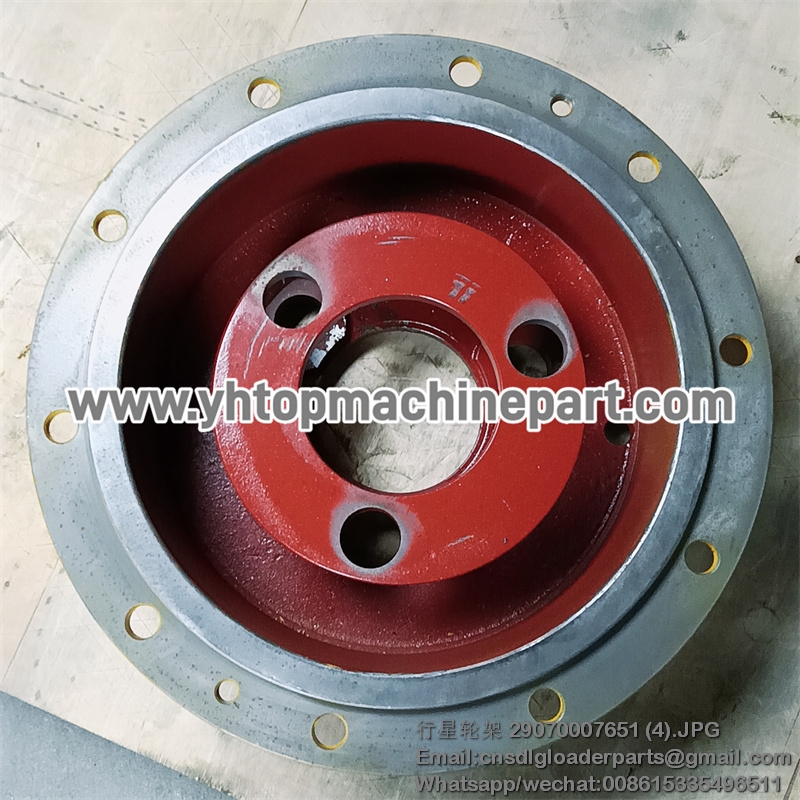

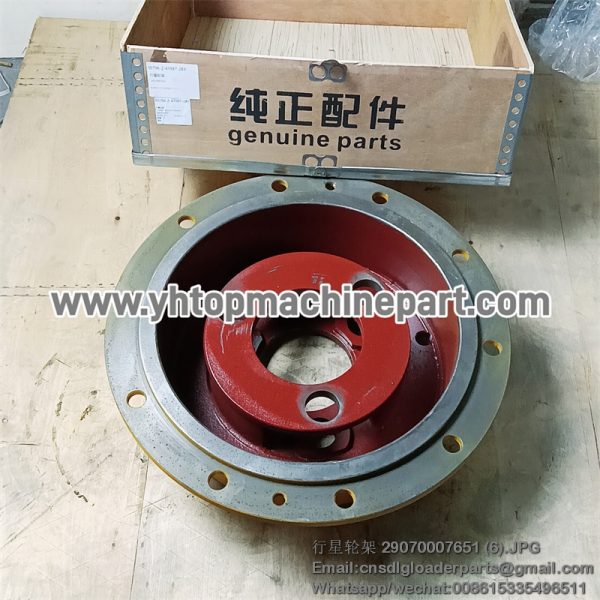

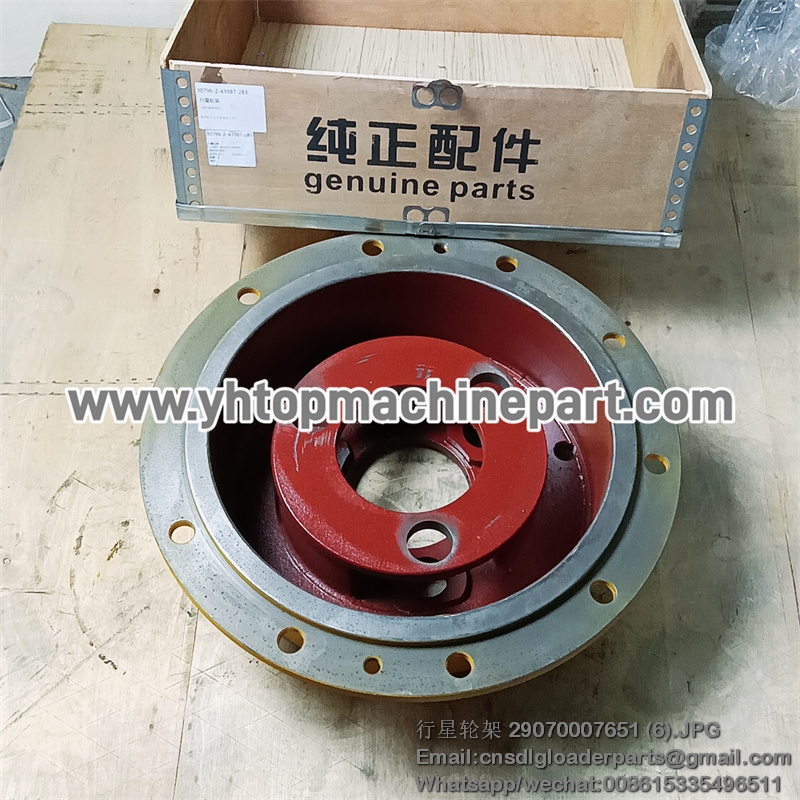

29070007651 ZL50G.5.3-3 Planet carrier LG956 Wheel Loader parts

1 螺栓GB5782-M20*90EpZn-10.9 SCREW 4011000219
2 垫圈GB848-20EpZn-300HV WASHER 4015000374
3 螺母GB889.1-M20EpZn-8 LOCK NUT 4013000132
4 锁紧油缸80*60*63.5 LOCK CYLINDER 4120004765
5 铲刀摆动油缸90*50*693.5-955.5 CYLINDER 4120004768
6 螺栓GB5783-M20*40EpZn-10.9 SCREW 4011000835
7 垫圈 WASHER 28350001371
8 垫圈GB96.1-20EpZn-300HV WASHER 4015000206
9 轴套Ⅳ SLEEVE 28350001301
10 调整垫片Ⅳ SHIM 28350001321
11 定位销 PIN 28350001381
12 垫圈GB97.1-20EpZn-300HV WASHER 4015000176
13 端盖 END COVER 28350001411
14 调整垫片Ⅱ SHIM 28350001351
15 调整垫片Ⅰ SHIM 28350001341
16 调整垫片Ⅲ SHIM 28350001361
17 轴套Ⅲ SLEEVE 28350001291
18 轴套Ⅰ SLEEVE 28350001271
19 铲刀升降油缸90*50*1379.5-493.5 CYLINDER 4120004769
20 右小臂 BRACKET 28350001231
21 定位摆架 BRACKET 28350001441
22 左小臂 BRACKET 28350001241
23 螺钉GB70.1-M20*145EpZn-10.9 SCREW 4014000415
24 螺栓GB5783-M12*35EpZn-10.9 BOLT 4011000596
25 垫圈GB97.1-12EpZn-300HV WASHER 4015000168
26 轴套Ⅱ SLEEVE 28350001281
27 轴套Ⅴ SLEEVE 28350001311
28 销轴 PIN 28350001431
29 端盖 COVER PLATE 28350001331
30 端盖 COVER PLATE 28350001421
31 提升油缸支架 BRACKET 28350001981
