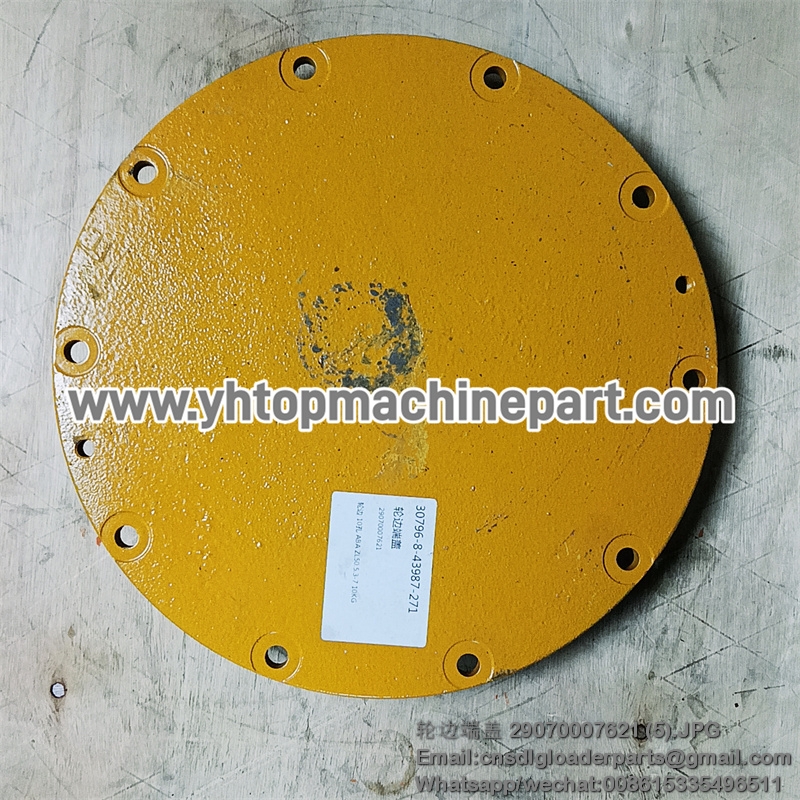

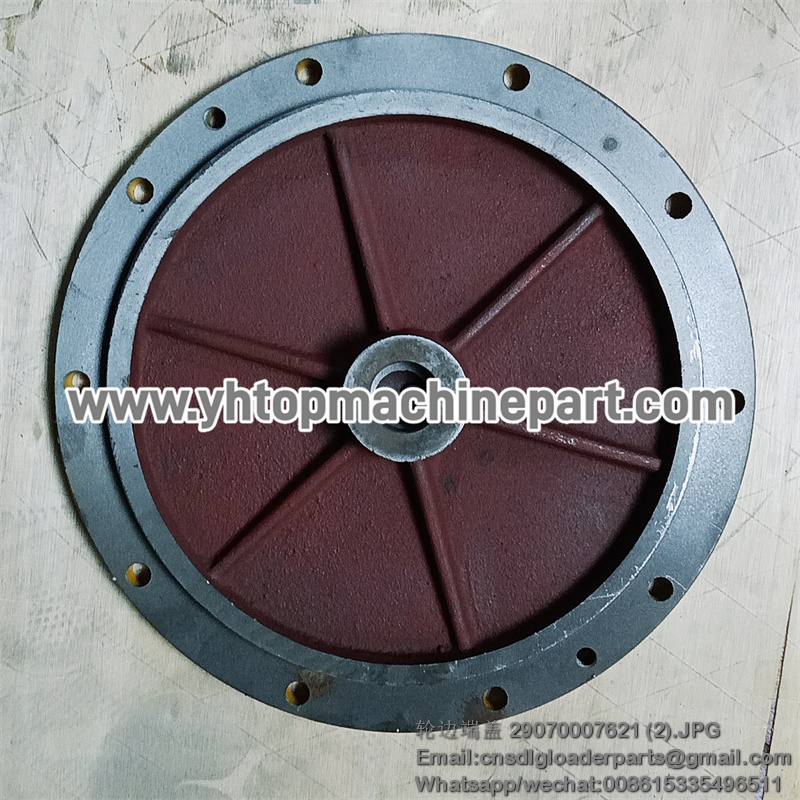

29070007621 Cover sdlg L955F L953F LG958L Loader Part

1 油封端盖 SEALING COVER 29070015101
2 滚动轴承GB297-32224 ROLLER BEARING 4021000038
3 齿圈支架总成 Gear ring 29070012892
4 内齿圈 Gear ring 29070015792
5 轮毂 FRONT WHEEL HUB 29070010931
6 轮辋螺栓 STUD 29070000621
7 螺母GB6171-M20*1.5EpZn-10 NUT 4013000203
8 垫圈GB93-20-65Mn SPRING WASHER 4015000030
9 O形圈LGB308-440*3.5 O-RING 4041000020
10 行星轮架 PLANET CARRIER 29070012661
11 磁性螺塞 PLUG 29070012481
12 螺栓GB5783-M10*30EpZn-8.8 BOLT 4011000084
13 垫圈GB93-10-65Mn SPRING WASHER 4015000025
14 盖 COVER 29070007621
15 定位块 BLOCK 29070009161
16 钢球GB308-17.462-GCr15 BALL 4090000006
17 挡圈GB894.1-52-65Mn RETAINING RING 4015000022
18 太阳轮 SUN GEAR 29070012671
19 行星轮垫片 SHIM 29070012681
20 钢球GB308-9.525-GCr15 BALL 4090000008
21 行星齿轮轴 PLANET GEAR SHAFT 29070012691
22 挡环 RETAINING RING 29070012701
23 行星齿轮 PLANET GEAR 29070012711
24 滚针GB309-P6*54-GCr15 NEEDLE ROLLER 4090000158
25 圆螺母 ROUND NUT 29070015591
26 螺钉GB70-M8*1*20-8.8 SCREW 4014000118
27 滚动轴承GB297-32028 ROLLER BEARING 4021000034
28 隔套 SPACER SLEEVE 29070000581
29 密封垫 GASKET 29070000591
30 油封HG4-692-SG170*200*15 SEALING RING 4030000146
31 螺栓GB5782-M8*45EpZn-8.8 BOLT 4011000298
32 垫圈GB93-8-65Mn SPRING WASHER 4015000036
33 防尘罩 DUST COVER 29070015111
