Description

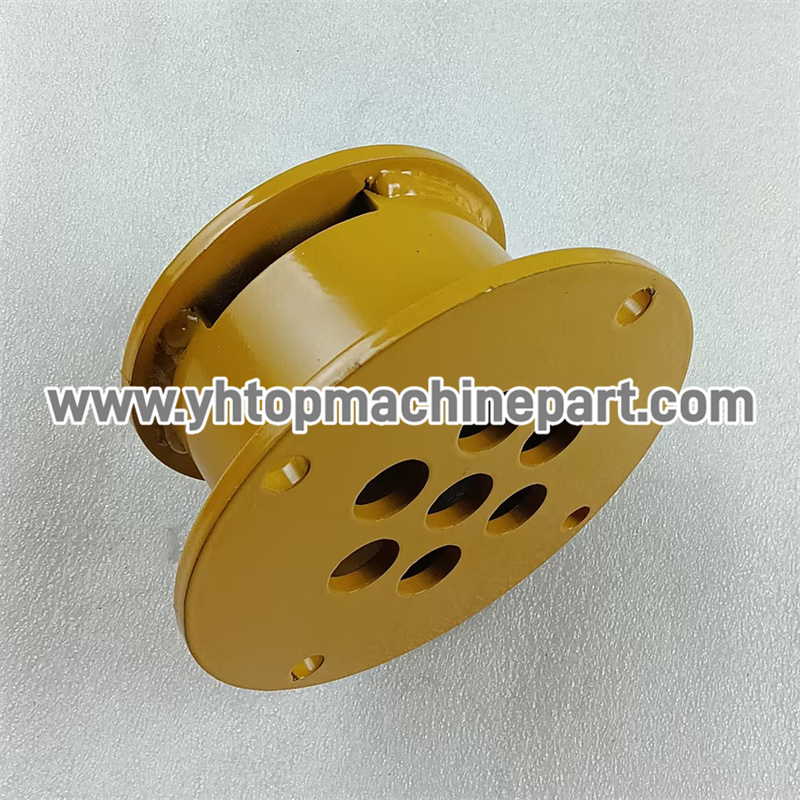

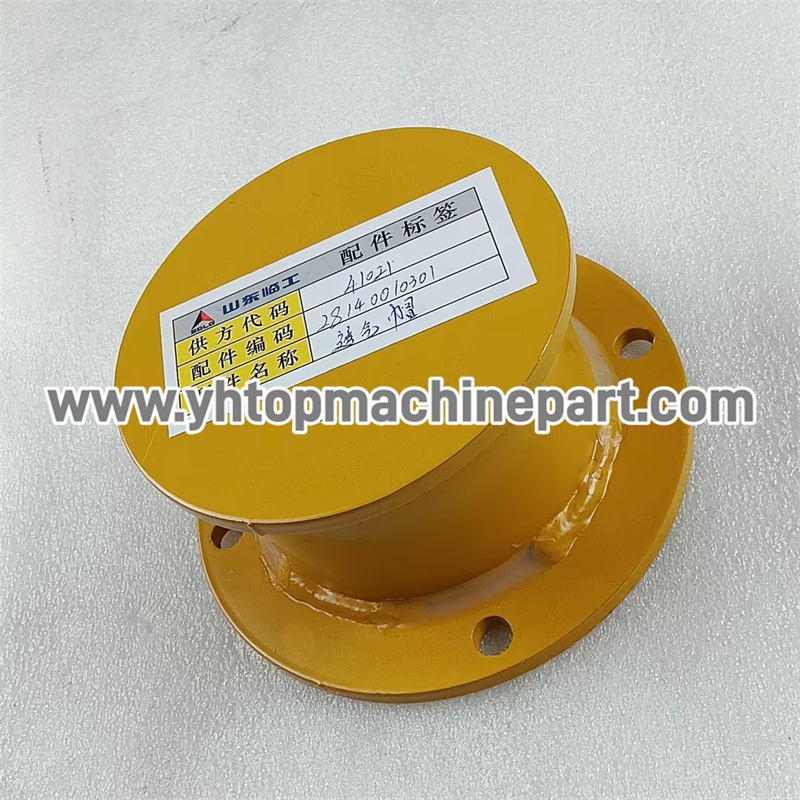

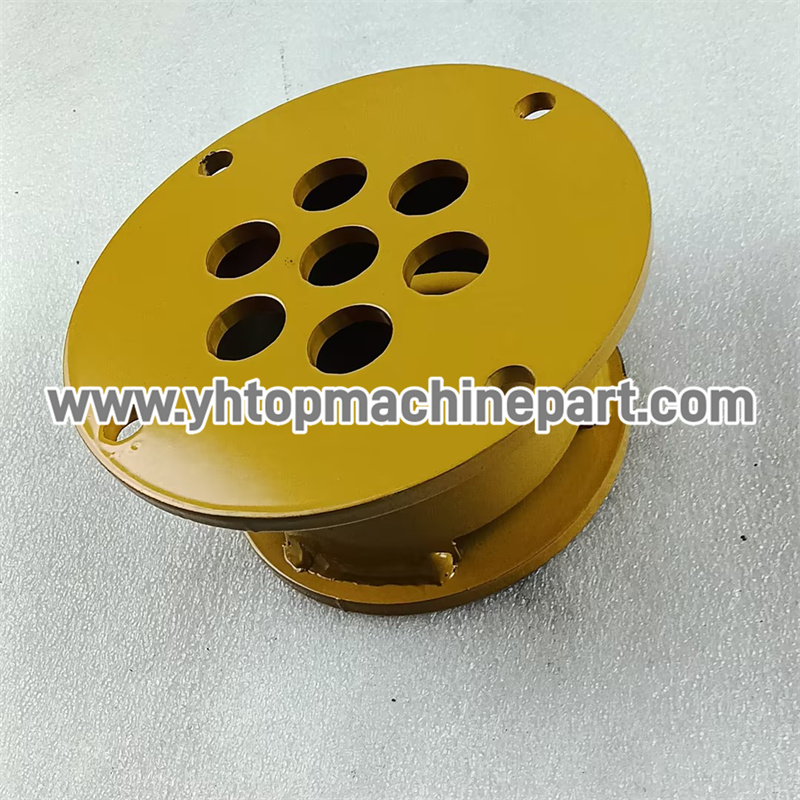

28140010301 Eye bolt sdlg RS8200 RS8140 RS8180 RS7120 Road Roller

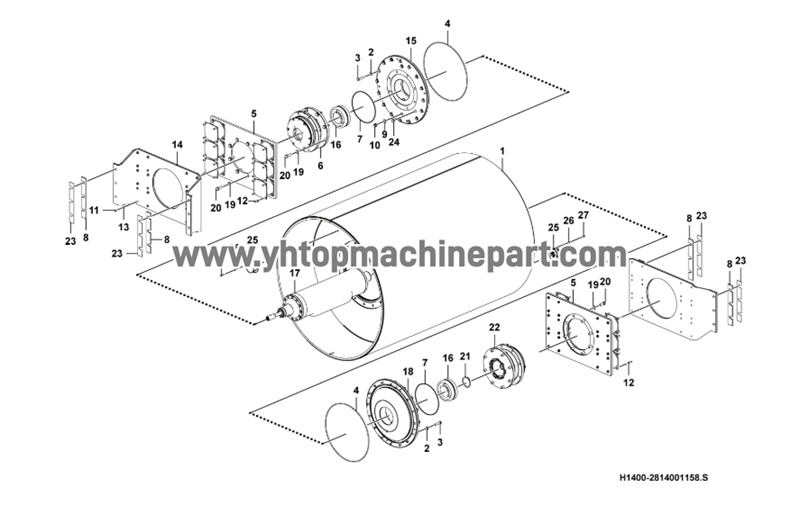

1 振动辊轮 Drum shell 28140011591
2 垫圈GB97.1-16EpZn-300HV WASHER 4015000181
3 螺栓GB5782-M16*70EpZn-10.9 BOLT 4011000824
4 O形圈GB3452.1-600*7.00G-氟橡胶 O-RING 4030000667
5 减震系统 RUBBER CUSHION 28140001531
6 左行走轴承总成 Bearing kit 28140011521
7 O形圈GB3452.1-320*5.30G-氟橡胶 O-RING 4030000668
8 垫板 PLATE 28140007411
9 垫圈JB982-27 WASHER 4015000091
10 磁性螺塞 MAGNETIC PLUG 28140003241
11 螺母GB6170-M12EpZn-8 NUT 4013000011
12 螺栓GB5783-M12*40EpZn-8.8 BOLT 4011000091
13 垫圈GB97.1-12EpZn-300HV WASHER 4015000168
14 联接板 CONNECTING PLATE 28140007491
15 轴承座焊合 Bearing seat 28140011631
16 调心滚子轴承22320 BEARING 4190001894
17 激振机构 ECCENTRIC 28140003261
18 轴承座焊合 Bearing seat 28140011641
19 垫圈GB97.1-20EpZn-300HV WASHER 4015000176
20 螺栓GB5783-M20*55EpZn-8.8 BOLT 4011000220
21 挡圈GB894.1-100-65Mn RETAINING RING 4015000239
22 右行走轴承总成 Bearing kit 28140011531
23 垫板 PLATE 28140007401
24 油标JB7941.2-A20 OIL DIPSTICK 4030000583
25 透气帽 Eye bolt 28140010301
26 垫圈GB97.1-8EpZn-300HV WASHER 4015000072
27 螺栓GB5783-M8*20EpZn-8.8 BOLT 4011000105
