Description

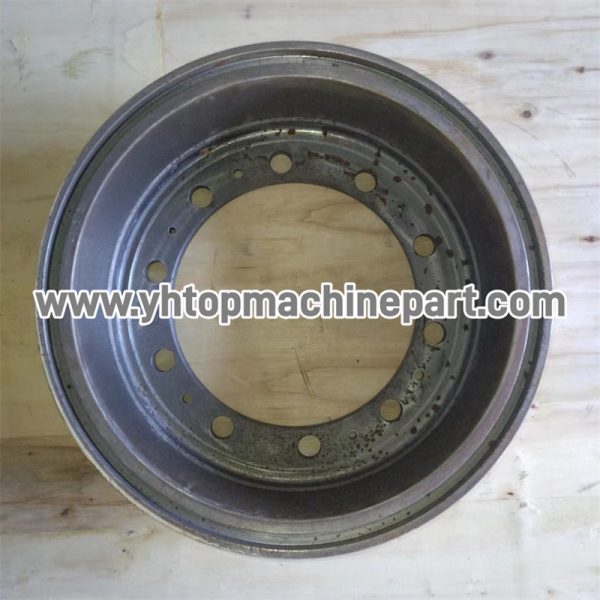

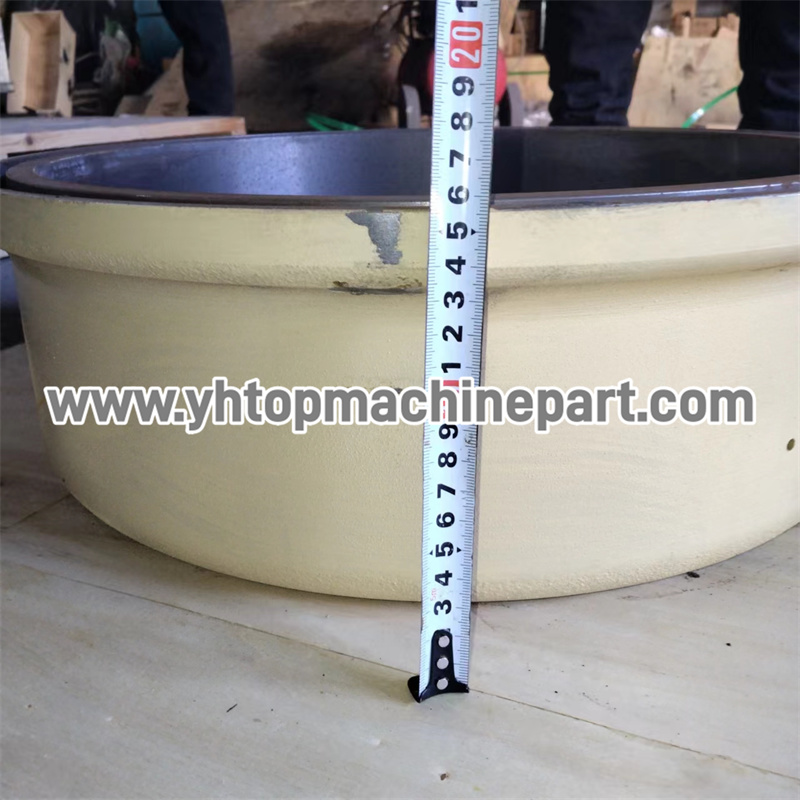

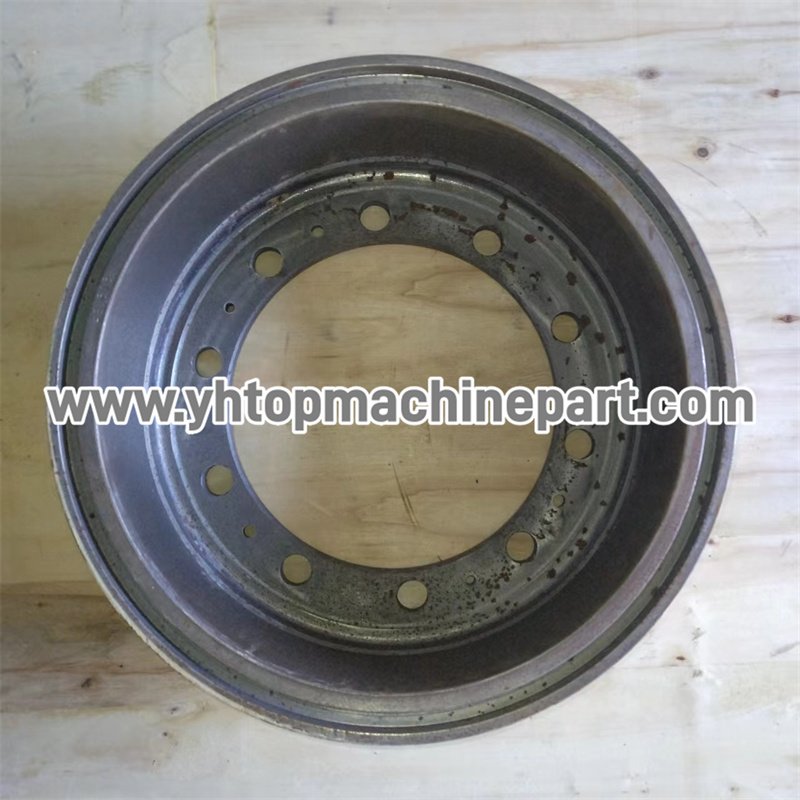

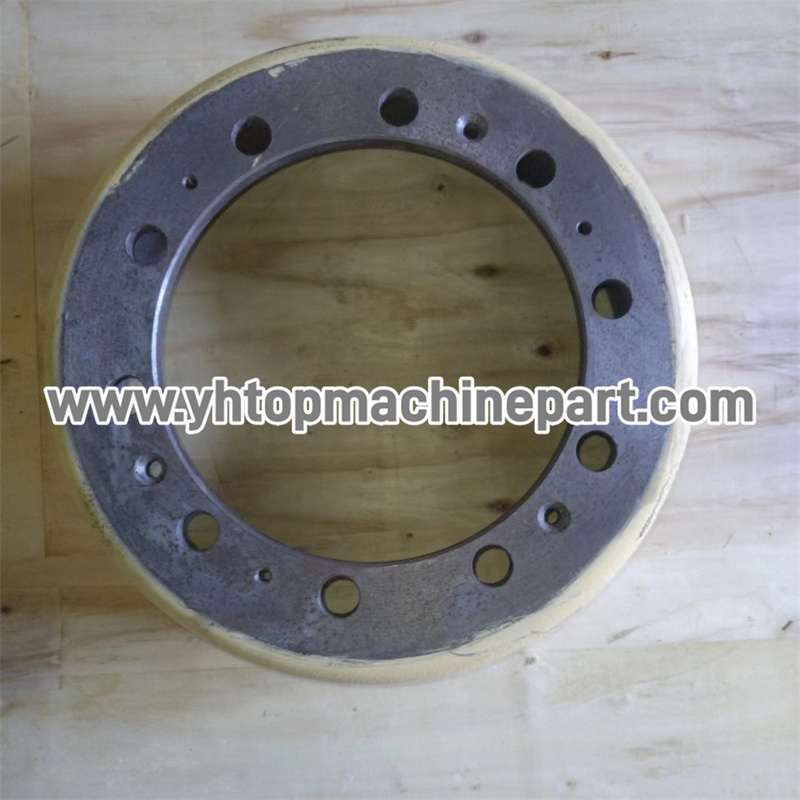

28100011741 Brake Drum SDLG G9190 G9200 G9220F Grader Part

1 圆螺母M75*2 Round nut 28100011811
2 挡板 Plate 28100011831
3 垫圈GB1230-14EpZn-45 PLAIN WASHER 4015000358
4 螺栓GB5786-M14*1.5*40flZnyc-10.9-480 Bolt 4011001363
5 调整垫片 Shim 28100011841
6 调整垫片 Shim 28100011851
7 调整垫片 Shim 28100011861
8 调整垫片 Shim 28100011871
9 调整垫片 Shim 28100011881
10 支承套 Sleeve 28100011761
11 前链轮 Chain gear 28100011791
12 O形圈GB3452.1-95*2.65G O-RING 4030000943
13 密封套 Sealing sleeve 28100011751
14 骨架油封HG4-692-PD130*160*12 SEALING RING 4030000046
15 滚动轴承GB297-33019 Roller bearing 4021000462
16 连接盘 Connecting flange 28100011771
17 O形圈GB3452.1-475*7.00G-FPM O-ring 4030000258
18 磁性螺塞 Plug 28100007101
19 垫圈JB982-24 WASHER 4015000122
20 制动器总成 Drum brake 4190004412
21 制动鼓 Brake drum 28100011741
22 轮辋螺母M22 Nut 29070022331
23 轮辋螺栓M22*1.5*84 Screw 28100006611
24 盒式油封cassette3-145*175*14.5 Sealing ring 4190003264
25 隔套 Spacer sleeve 28100011821
26 驱动轴 Drive shaft 28100011731
27 滚动轴承GB297-33020 Roller bearing 4021000463
28 P-螺钉GB70.1-M16*45EpZn-12.9 Screw 4014000672
29 垫圈GB93-16-65Mn SPRING WASHER 4015000098
30 螺钉GB819.2-M10*25 Screw gb819.2-m10*25 4014000401
