Description

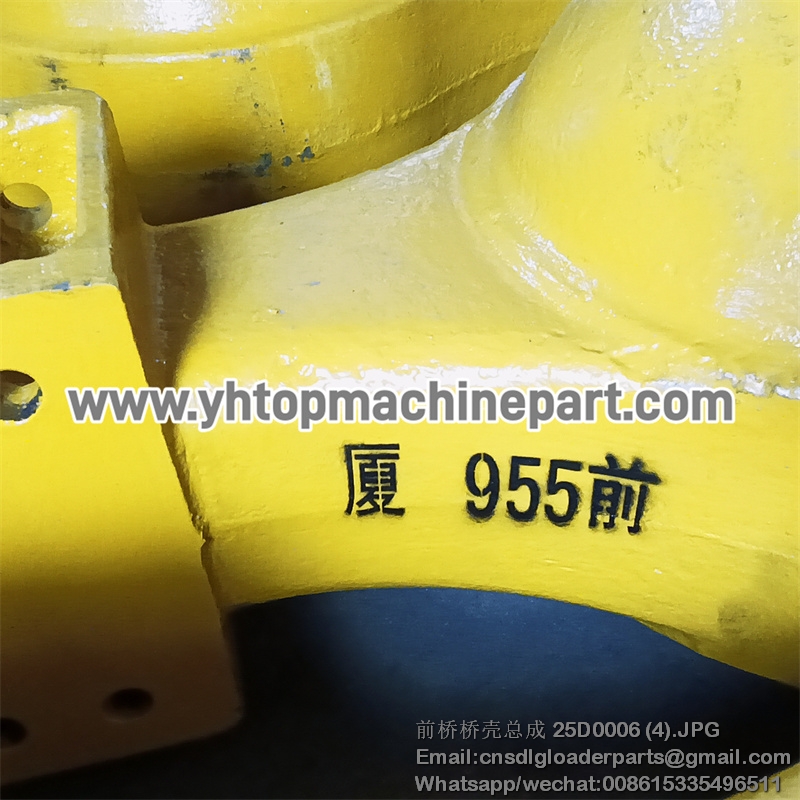

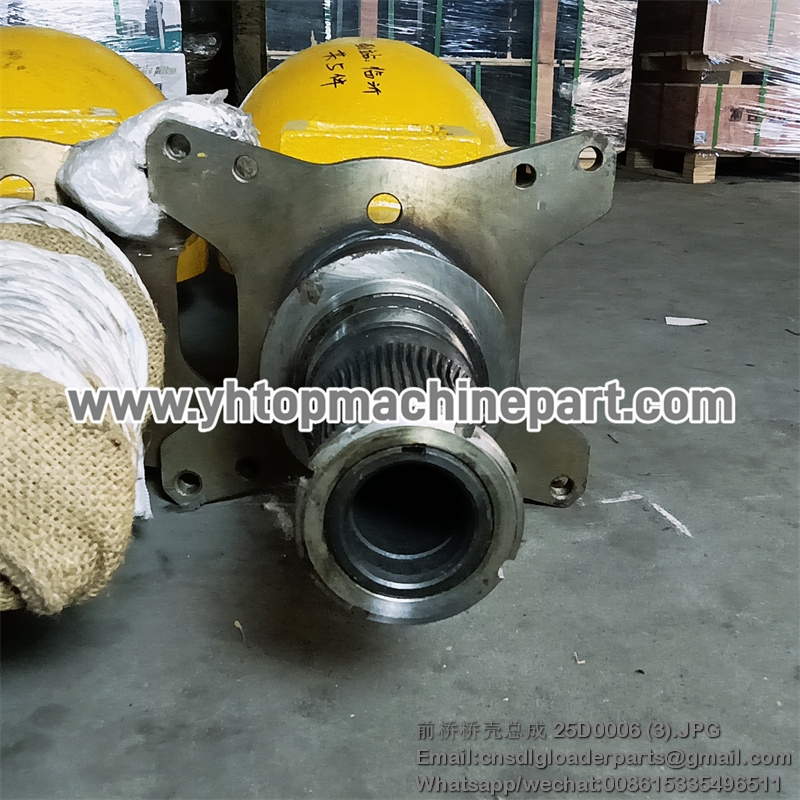

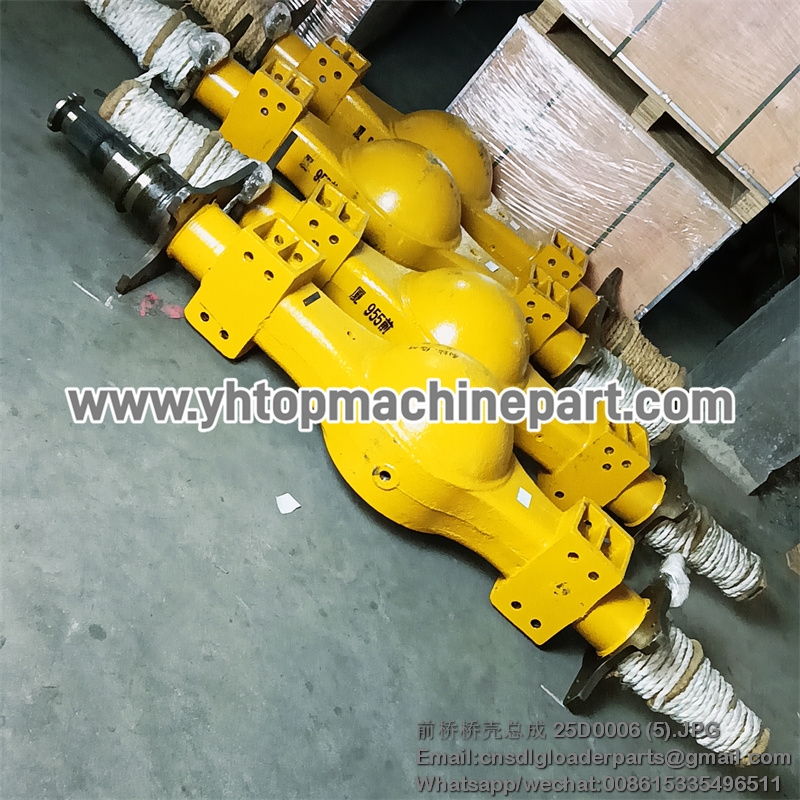

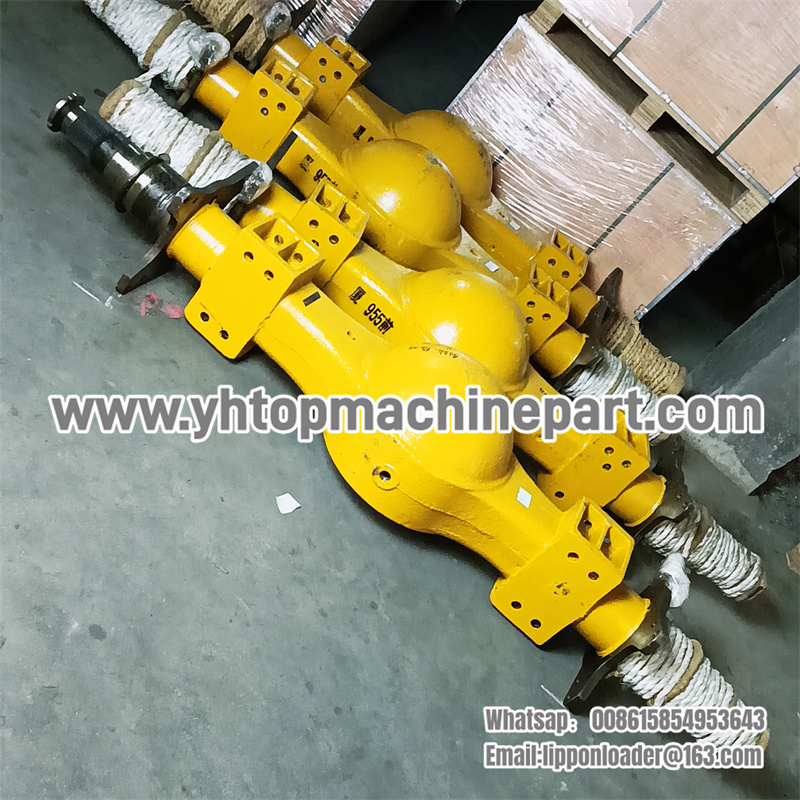

25D0006 Front Axle Housing XGMA XG955 XG958 Loader

Serial No Part Number Part Name Part Model
1 LG853.03.01.05-001 Direct gear Compression plate 403501
2 LG853.03.01.05-004 Direct gear driven plate 403507
3 LG853.03.01.05.02 Direct gear piston assembly 403508A-510A
4 LG50EX.03.01.02-001 Middle shaft output gear 403511J
5 LG853.03.01.05-006 Direct gear oil cylinder body 403512A
6 LG853.03.01.05-007 Disk shape spring 403513
7 GB/T894.1 Spacer 65
8 GB/T283 Cylindrical roller bearing 20×47×14
9 LG853.03.01.01-001 Rotary oil seal 403101
10 GB/T276 Ball bearing 6411 55
11 LG853.03.01.01-002 Rotary oil seal 403102
12 GB/T276 Ball bearing 6022 110
13 LG853.03.01.05-008 Adjust shim 403517
14 LG853.03.01.05-009 Stop gasket 403518B
15 LG853.03.01.05-010 Pin 403516
16 GB/T119 Pin φ10S7×30
17 LG853.03.01.05-002 Direct gear shaft 403502A
18 GB/T5785 Bolt M12x1.25×100
19 LG853.03.01.05-003 Cylindrical pin 403504
20 GB/T5782 Bolt M8
21 GB/T6170 Nut M8
22 GB/T93 Washer 8
23 LG853.03.01.05.01 Direct gear drive plate 403505-506

Serial No Part Number Part Name Part Model
1 LG853.03.01.03-001 Rear output flange 403301D
10 LG853.03.01.03-005 Output shaft 403314
11 GB/T283 Column roller bearing NUP312E
12 LG853.03.01.03-006 Spacer 403305
13 LG853.03.01.03-007 Oil seal 403304C
14 HG4-692-67 Oil seal 120
15 LG853.03.01.03-008 Gasket 403317
16 GB1235-76 O-ring 52
17 LG855.03.01.01-001 Front output flange 403316B
2 GB890-80 Retaining nut M33X1.5
3 LG853.03.01.03-002 Gasket 403303
4 LG853.03.01.03-003 Oil seal seat 403304B
5 GB1235-76 O-ring 130
6 HG4-692-67 Oil seal SG70X95X12
7 GB/T893.1 Spacer 130
8 GB/T276 Ball bearing 6312
9 LG50EX.03.01.01-001 Output shaft gear 403311J

Serial No Part Number Part Name Part Model
1 LG50EX.04.01 Front drive axle assembly
2 GB/T5786 Bolt M12
3 GB/T889.1 Nut M12X1.5
4 LG853.04-001 Locating ring LG50F.04001A
5 LG856.04.02 Front drive shaft assembly LG50F.04201A
6 GB/T5783 Bolt M16
7 GB/T97.1 Washer 16
8 GB/T93 Washer 16
9 LG855.04.03 21kg LG50F.04203A
10 GB/T5786 Bolt M12
11 GB/T93 Washer 12
12 LG50EX.04.05 Rear drive axle assembly LG50F.04000
13 LG853.04.05 Rim assembly
14 GB/T2980 Tire 23.5-25 E-3
15 GB/T5784 Bolt M30X2X145-10.9
16 GB/T889.1 Nut M30
17 GB/T5784 Bolt M30

Serial No Part Number Part Name Part Model
1 ZL50EX.04.01.01 Wheel reductor assembly LG50F.04400A
2 ZL50EX.04.01.02 Front and rear axle housing assembly LG50F.04500A
3 ZL50EX.04.01.03 Main reducer assembly LG50F.04300A
4 LG853.04.01.04 Vent pipe 404002
5 GB6173-86 Bolt M16x1-6
6 ZL50EX.04.01-001 Semi shaft LG50F.04002A
7 LG853.04.01.03 Caliper disk brake 408100
8 ZL50EX.04.01-002 Rim nut LG50F.04003A
9 LG853.04.01-023 Screw plug
10 GB93-87 Gasket 14
11 GB5785-86 Bolt M14
12 GB5785-86 Bolt M14
13 GB5786-86 Bolt M14
14 GB/T119-1986 Pin A12x20
15 LG853.04.01-020 Bolt M20x1.5×56 408120
16 GB93-87 Washer 20
17 LG853.04.01.03.02 Brake pad 408107-108
18 GB93-87 Washer 10
19 LG853.04.01.03-011 408114
