Description

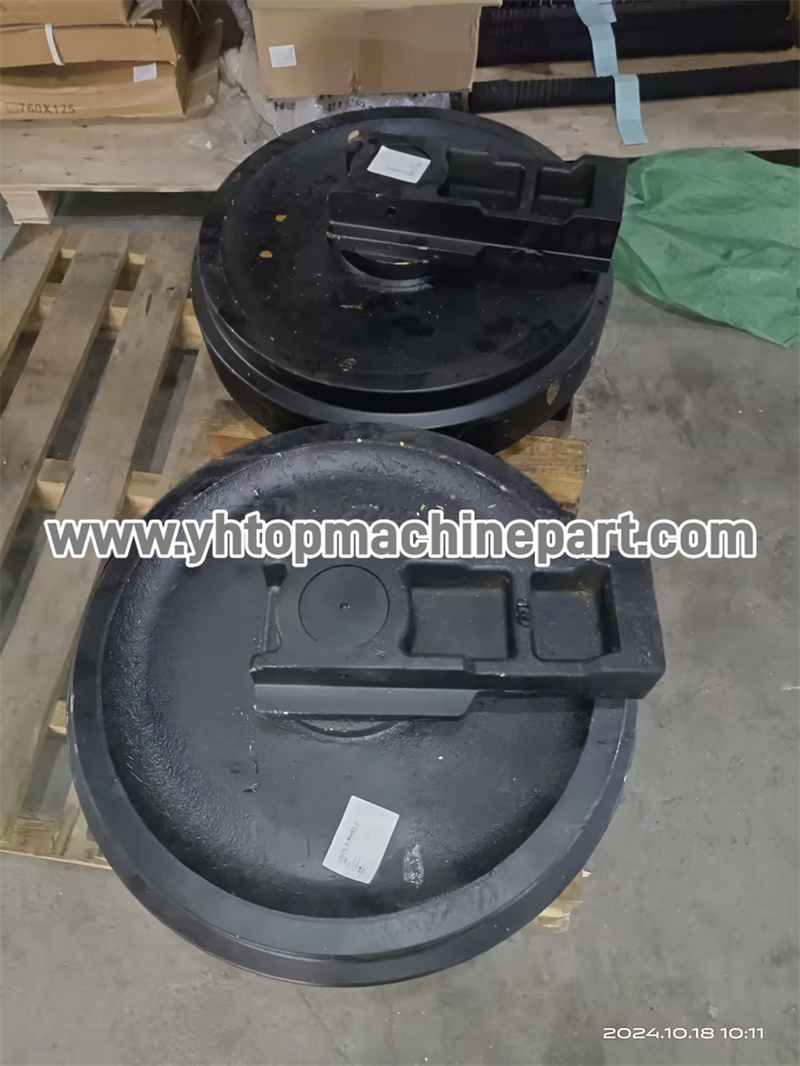

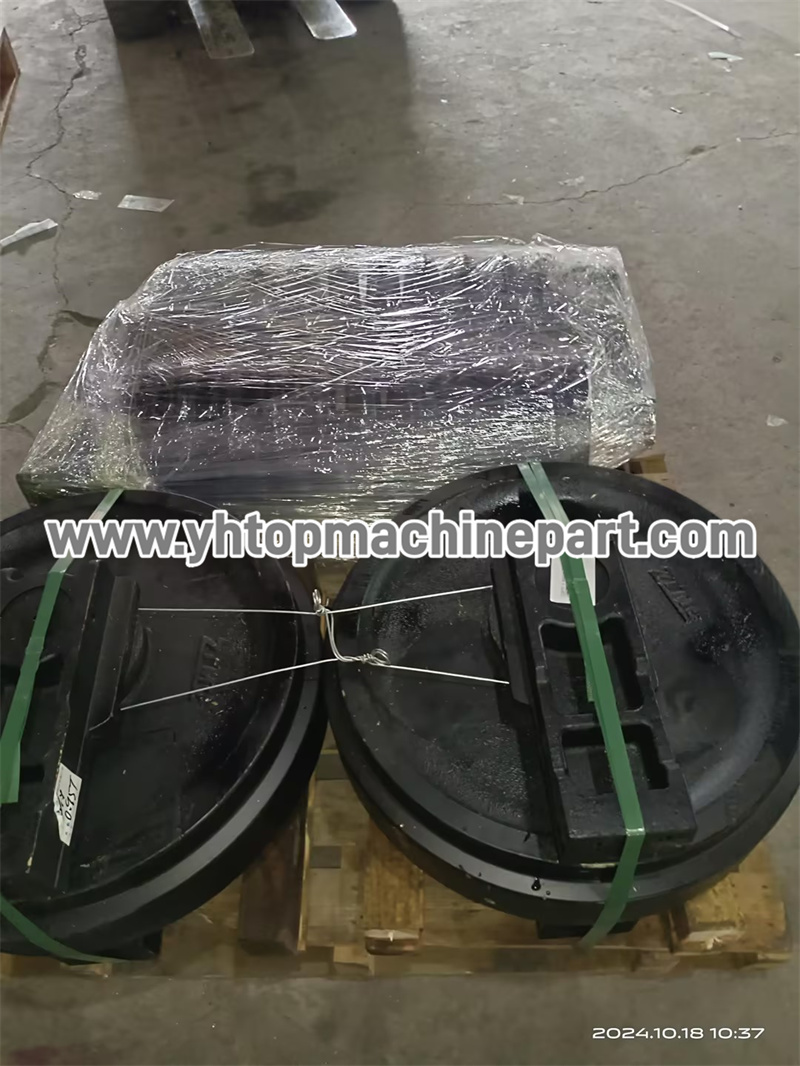

14404059 IDLER SDLG E6360F E6400F E6500F Excavator Part

1 履带 Track chain 14406156
2 链轨总成 Chain link 14403522
3 左链轨节 Chain link 14403555
4 右链轨节 Chain link 14403554
5 销 PIN 11215232
6 销 PIN 11215233
7 套 BUSHING 11215234
8 套 BUSHING 11215235
9 密封圈 SEALING 11215236
10 定位器 SPACER 11215237
11 履带板 Track shoe 14403521
12 螺栓 BOLT 11216199
13 螺母 NUT 11215239
1 履带护板 Protecting plate 14404849
2 六角螺钉 HEXAGON SCREW 11214075
3 垫圈 WASHER 11215351
1 引导轮 Idler 14404059
2 IDLER SHELL_WA Idler shell_wa 14404061
3 轴 Shaft 11220990
4 套 BUSHING 11215314
5 SUPPORT Support 14404060
6 定位销 PIN 11215320
7 引导轮密封件总成 SEALING 11216204
8 丝堵 PLUG 11210679
9 o 型圈 O-RING 11215327
10 六角螺钉 SCREW 11210207
11 弹垫 SPRING WASHER 11210067
1 支重轮 Roller 14404063
2 垫圈 WASHER 11215351
3 六角螺钉 HEXAGON SCREW 11215352
1 履带张紧器 Track tensioner 14406593
2 涨紧弹簧 Spring tensioner 11222074
3 缸体 FRONT SPRING ANCHORAGE 11216376
4 活塞 PISTON 11216377
5 轭 Yoke 11222075
6 行程限位套 STOP SLEEVE 11216379
7 螺母 NUT 11215259
8 密封环 Sealing ring 11222076
9 密封环 Sealing ring 11222077
10 密封环 Sealing ring 11223067
11 安装版 PLATE 11215269
12 六角螺钉 HEXAGON SCREW 11210122
13 单向阀 VALVE 11217664
14 油杯 LUBRICATING NIPPLE 11210001
15 挡板 PLATE 11216383
16 六角螺钉 HEXAGON SCREW 11210124
17 弹垫 SPRING WASHER 11210064
18 棒 Rod 11225118
19 六角螺钉 Hexagon screw 11223044
20 缸体 Track adjusting cylinder 11225119
1 托链轮总成 TOP ROLLER 14403562
2 螺栓 HEXAGON SCREW 11215342
3 六角螺母 HEXAGON NUT 11210110
4 垫圈 PLAIN WASHER 11210200
1 驱动轮 Sprocket 14405661
2 六角螺钉 Hexagon screw 11220452
3 平垫圈 PLAIN WASHER 11210203
1 护板 Protecting plate 14404125
2 护板 Protecting plate 14404126
3 垫圈 PLAIN WASHER 11210199
4 六角螺钉 HEXAGON SCREW 11210101
